B340LA -13- F Schottky Barrier Diode / Schottky Barrier Rectifier 40 V

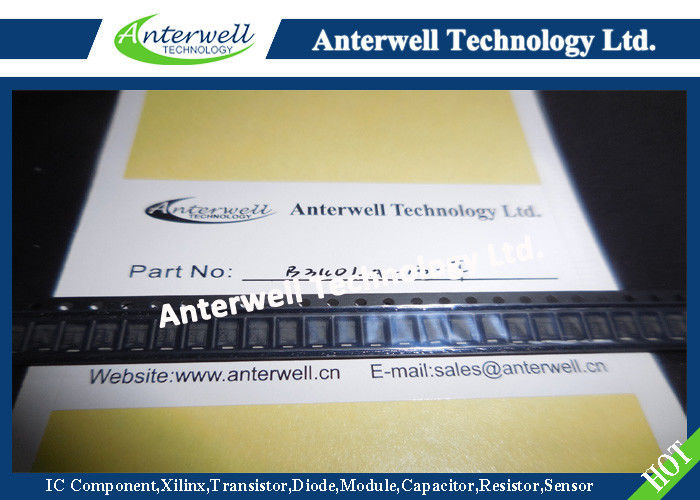

: Large Image : B340LA -13- F Schottky Barrier Diode / Schottky Barrier Rectifier 40 V

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	B340LA-13-F

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9100pcs

Contact Now

Detailed Product Description

Peak Repetitive Reverse Voltage:	40 V	Working Peak Reverse Voltage:	40 V
DC Blocking Voltage:	40 V	RMS Reverse Voltage:	28 V
Average Rectified Output Current:	3.0 A	Operating And Storage Temperature:	-40 To +125 °C
High Light:	diode rectifier circuit , signal schottky diode

B340LA -13- F Schottky Barrier Diode / Schottky Barrier Rectifier 40 V

Features

Very Low Forward Voltage Drop
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automatic Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 70A Peak
Lead Free Finish/RoHS Compliant

Mechanical Data

Case: SMA/SMB
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020C
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Approximate Weight: SMA 0.064 grams; SMB 0.093 grams

Maximum Ratings @ T_A = 25 ℃ unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load unless otherwise noted.

For capacitive load, derate current by 20%.

Characteristic	Symbol	Value	Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	V_RRM V_RWM V_R	40	V
RMS Reverse Voltage	V_R(RMS)	28	V
Average Rectified Output Current (Note 1) T_T = 90°C	I_O	3.0	A
Non-Repetitive Peak Forward Surge Current, single sine-wave superimposed on rated load, 60Hz	I_FSM	70	A
Operating and Storage Temperature Range	T_j, T_STG	-40 to +125	°C

B340LA -13- F Schottky Barrier Diode / Schottky Barrier Rectifier 40 V
