2SC2482 TO-92 Plastic Package Transistors ( NPN ) , General Purpose Npn Transistor

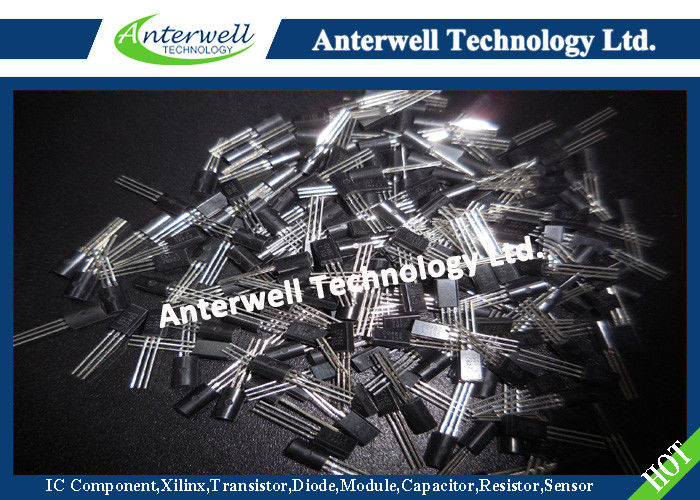

: Large Image : 2SC2482 TO-92 Plastic Package Transistors ( NPN ) , General Purpose Npn Transistor

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SC2482

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8900pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	300 V	Collector-emitter Voltage:	300 V
Emitter-base Voltage:	7 V	Collector Current:	100 MA
Base Current:	50 MA	Junction Temperature:	150 °C
High Light:	power mosfet ic , silicon power transistors

Silicon NPN Epitaxial Type (PCT Process) 2SC2482

High-Voltage Switching and Amplifier Applications

Color TV Horizontal Driver Applications

Color TV Chroma Output Applications

• High breakdown voltage: V_CEO = 300 V

• Small collector output capacitance: C_ob = 3.0 pF (typ.)

• Recommended for chroma output and driver applications for line-operated TV horizontal.

Absolute Maximum Ratings (Ta = 25°C)

Characteristics	Symbol	Rating	Unit
Collector-base voltage	V_CBO	300	V
Collector-emitter voltage	V_CEO	300	V
Emitter-base voltage	V_EBO	7	V
Collector current	I_C	100	mA
Base current	I_B	50	mA
Collector power dissipation	P_C	900	mW
Junction temperature	Tj	150	°C
Storage temperature range	Tstg	−55 to 150	°C

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
