2SC2073 Power Mosfet Transistor Silicon NPN Power Transistors With TO-220 package

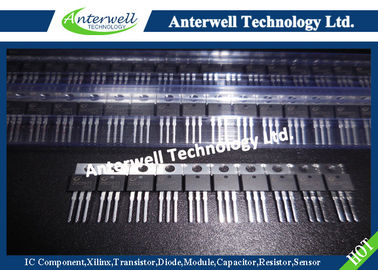

: Large Image : 2SC2073 Power Mosfet Transistor Silicon NPN Power Transistors With TO-220 package

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SC2073

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8700pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	150 V	Collector-emitter Voltage:	150 V
Emitter-base Voltage:	5 V	Collector Current:	1.5 A
Base Current:	0.5 A	Junction Temperature:	150 ℃
High Light:	power mosfet ic , silicon power transistors

Silicon NPN Power Transistors 2SC2073

DESCRIPTION

·With TO-220 package

·Complement to type 2SA940

APPLICATIONS

·Power amplifier applications

·Vertical output applications

Absolute maximum ratings (Ta=25℃)

SYMBOL	PARAMETER	CONDITIONS	VALUE	UNIT
V_CBO	Collector-base voltage	Open emitter	150	V
V_CEO	Collector-emitter voltage	Open base	150	V
V_EBO	Emitter-base voltage	Open collector	5	V
I_C	Collector current		1.5	A
I_B	Base current		0.5	A
P_C	Collector power dissipation	Ta=25℃	1.5	W
P_C	Collector power dissipation	TC=25℃	25	W
Tj	Junction temperature		150	℃
Tstg	Storage temperature		-55~150	℃

PINNING

PIN	DESCRIPTION
1	Base
2	Collector;connected to mounting base
3	Emitter

2SC2073 Power Mosfet Transistor Silicon NPN Power Transistors With TO-220 package

PACKAGE OUTLINE

2SC2073 Power Mosfet Transistor Silicon NPN Power Transistors With TO-220 package
