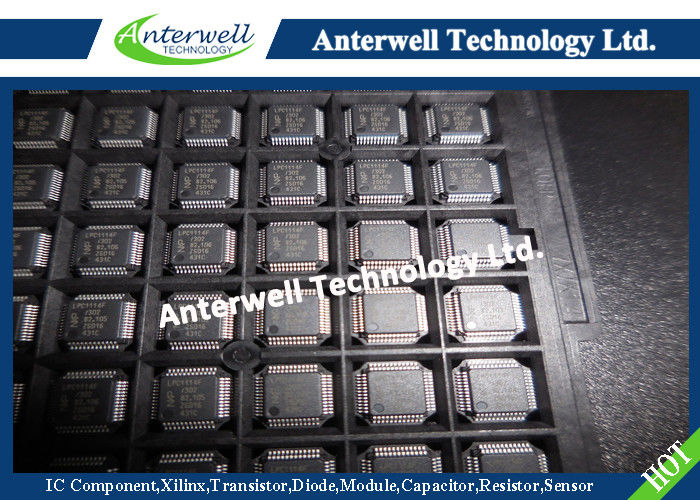

LPC1114FBD48-302 Programmable Transistor Chip IC Electronics Rectifier Diode

STGIPS20K60 Mosfet Power Module Transistor Chip IC Electronics Rectifier Diode China Supplier

1. General description
The LPC1111/12/13/14 are a ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.

The LPC1111/12/13/14 operate at CPU frequencies of up to 50 MHz. The peripheral complement of the LPC1111/12/13/14 includes up to 32 kB of flash memory, up to 8 kB of data memory, one Fast-mode Plus I2C-bus interface, one RS-485/EIA-485 UART, up to two SPI interfaces with SSP features, four general purpose counter/timers, a 10-bit ADC, and up to 42 general purpose I/O pins.
2. Features and benefits „
System: ‹
ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.
ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).

‹ Serial Wire Debug. ‹ System tick timer. „
Memory: ‹ 32 kB (LPC1114), 24 kB (LPC1113),
16 kB (LPC1112), or 8 kB (LPC1111) on-chip flash programming memory. ‹
8 kB, 4 kB, or 2 kB SRAM. ‹

In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software. „ Digital peripherals: ‹ Up to 42 General Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors.

‹ GPIO pins can be used as edge and level sensitive interrupt sources. ‹ High-current output driver (20 mA) on one pin. ‹ High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus. ‹

Four general purpose counter/timers with a total of four capture inputs and 13 match outputs. ‹ Programmable WatchDog Timer (WDT). „

Analog peripherals: ‹ 10-bit ADC with input multiplexing among 8 pins.
ABSOLUTE MAXIMUM RATINGS(1)


Package Dimensions
