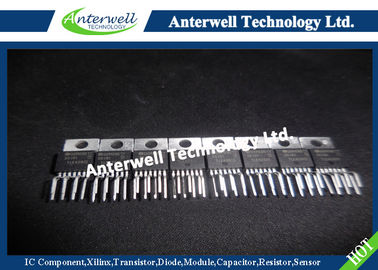

TLE4261S 5-V Low-Drop Voltage Regulator complementary power mosfet audio amplifier

Features

● Very low-drop voltage

● Very low quiescent current

● Low starting-current consumption

● Proof against reverse polarity

● Input voltage up to 42 V

● Overvoltage protection up to 65 V (≤ 400 ms)

● Short-circuit proof

● External setting of reset delay

● Integrated watchdog circuit

● Wide temperature range

● Overtemperature protection

● Suitable for automotive use

● EMC proofed (100 V/m)

Functional Description

TLE 4261 is a 5-V low-drop voltage regulator in a P-TO220-7 or in a P-DSO package. The maximum input voltage is 42 V (65 V/≤ 400 ms). The device can produce an output current of more than 500 mA. It is short-circuit proof and incorp

Pin Configuration (top view)
