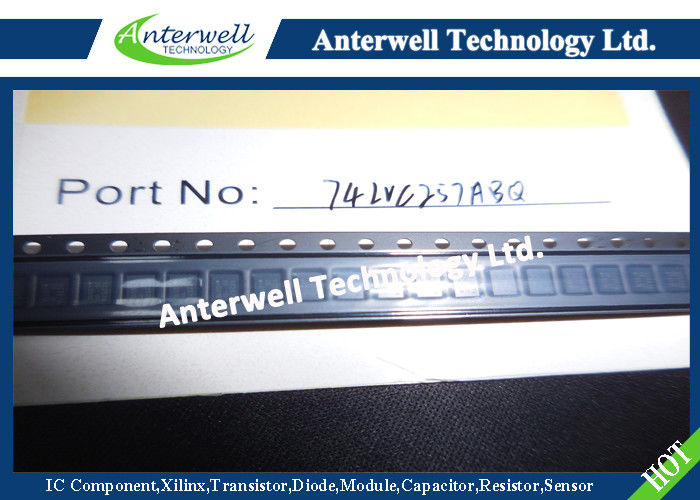

74LVC257ABQ Programmable IC Chips Quad 2 input multiplexer tv circuit boards

FEATURES

• Wide supply voltage range of 1.2 to 3.6 V

• In accordance with JEDEC standard no. 8-1A

• CMOS lower power consumption

• Direct interface with TTL levels

• Output drive capability 50
transmission lines at 85°C • 5 Volt tolerant inputs/outputs, for interfacing with 5 Volt logic

DESCRIPTION

The 74LVC257A is a high-performance, low-power, low-voltage, Si-gate CMOS device and superior to most advanced CMOS compatible TTL families.

Inputs can be driven from either 3.3V or 5.0V devices. In 3-State operation, outputs can handle 5V. This feature allows the use of these devices as translators in a mixed 3.3V/5V environment.

The 74LVC257A is a quad 2-input multiplexer with 3-state outputs, which select 4 bits of data from two sources and are controlled by a common data select input (S). The data inputs from source 0 (1l0 to 4l0) are selected when input S is LOW and the data inputs from source 1 (1l1 to 4l1) are selected when S in HIGH. Data appears at the outputs (1Y to 4Y) in true (non-inverting) form from the selected inputs. The 74LVC257A is the logic implementation of a 4-pole, 2-position switch, where the position of the switch is determined by the logic levels applied to S. The outputs are forced to a high impedance OFF-state when OE is HIGH.
