ACD0900S3C Programmable IC Chips VHF / UHF CATV / TV Tuner Down converter inverter timer circuit board

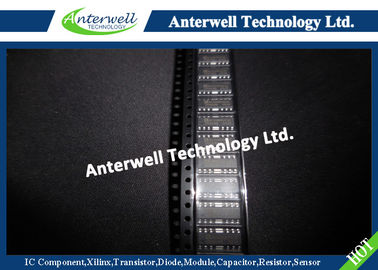

: Large Image : ACD0900S3C Programmable IC Chips VHF / UHF CATV / TV Tuner Down converter inverter timer circuit board

Product Details:

Place of Origin:	Original
Brand Name:	ANADIGICS
Certification:	Original Factory Pack
Model Number:	ACD0900S3C

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

Current:	- 80 - MA	Power Consumption @ 5.0V:	- 400 - MW
Phase Noise @ 10 KHz Offset -:	- 89 - 85.5 DBc/Hz	Noise Figure:	- 8.0 9.5 DB
Gain ( 200Ω Load)1:	7.8 9.5 - DB
High Light:	programming ic chips , programmable audio chip

ACD0900S3C VHF/UHF CATV/TV Tuner Downconverter inverter printed circuit board timer circuit board

FEATURES

►Integrated Monolithic Downconverter

►8 dB Noise Figure

►10 dB Conversion Gain

►High Linearity

► Small Size

►Low Cost

►High Reliability

DESCRIPTION

The ACD0900 MMIC is a high performance downconverter fabricated entirely in GaAs. It is designed for use as the 2nd conversion stage in double-conversion tuners and cable modems, downconverting 900 -1200 MHz RF inputs to a fixed IF of 35 - 150 MHz (depending on LO frequency).

The IC incorporates a low noise amplifier, high linearity double balanced mixer, phase splitter and oscillator in a SOIC 16 lead surface mount package. The high degree of functionality allows tuner manufactures to reduce size and cost by lowering the component count and decreasing the amount of production alignment steps, while significantly improving performance and reliability.

ACD0900S3C Programmable IC Chips VHF / UHF CATV / TV Tuner Down converter inverter timer circuit board
