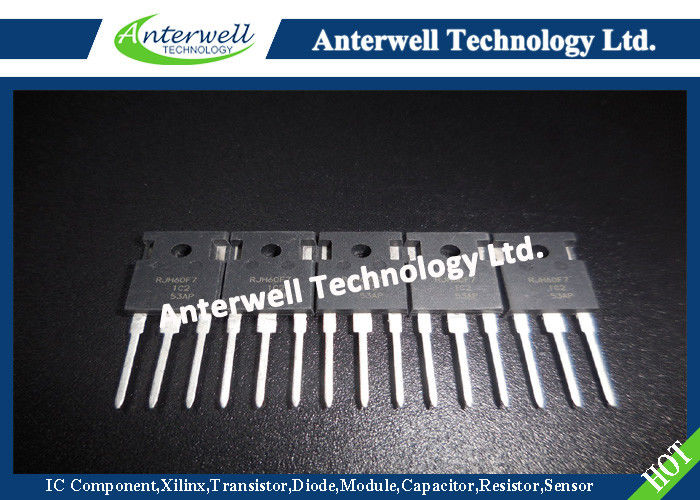

RJH60F7ADPK
Silicon N Channel IGBT High Speed Power Switching
Features
Absolute Maximum Ratings (Tc = 25°C)
Item | Symbol | Ratings | Unit | |
Collector to emitter voltage | VCES | 600 | V | |
Gate to emitter voltage | VGES | ±30 | V | |
Collector current | Tc = 25°C | IC | 90 | A |
Tc = 100°C | IC | 50 | A | |
Collector peak current | ic(peak) Note1 | 180 | A | |
Collector to emitter diode forward peak current | DF(peak) Note2 | 100 | A | |
Collector dissipation | PC | 328.9 | W | |
Junction to case thermal impedance (IGBT) | θj-c | 0.38 | °C/W | |
Junction to case thermal impedance (Diode) | θj-c | 2.0 | °C/W | |
Junction temperature | Tj | 150 | °C | |
Storage temperature | Tstg | –55 to +150 | °C |
Notes: 1. Pulse width limited by safe operating area.
2. PW ≤ 5 μs, duty cycle ≤ 1%
Outline
