PBM3960 Microstepping Controller / Dual Digital to Analog Converter common ic chips

China PBM3960 Microstepping Controller / Dual Digital to Analog Converter common ic chips supplier

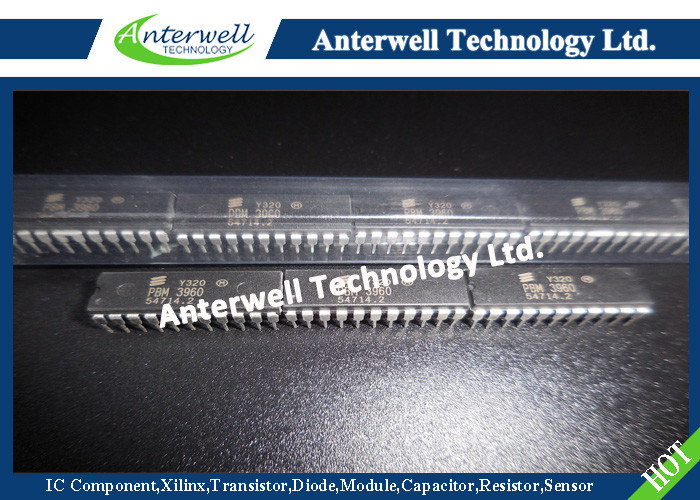

Large Image :  PBM3960 Microstepping Controller / Dual Digital to Analog Converter common ic chips

Product Details:

Place of Origin: Original
Brand Name: ERICSSON
Certification: Original Factory Pack
Model Number: PBM3960

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 5200PCS
Contact Now
Detailed Product Description
VDD: 6 V VI: -0.3- VDD+ 0.3 V
VR: -0.3 -VDD+ 0.3 V II: -0.4 -+0.4 MA
TS: -55 +150 °C
High Light:

electronics ic chip

,

integrated circuit components


PBM3960 Microstepping Controller/Dual Digital-to-Analog Converter common ic chips digital ic circuits


PBM3960 Microstepping Controller / Dual Digital to Analog Converter common ic chipsKey Features

• Analog control voltages from 3 V down to 0.0 V.

• High-speed microprocessor interface.

• Automatic fast/slow current decay control.

• Full-scale error ±1 LSB.

• Interfaces directly with TTL levels and CMOS devices.

• Fast conversion speed, 3 µs.

• Matches PBL 3771.



Description

PBM 3960/1 is a dual 7-bit+sign, Digital-to-Analog Converter (DAC) especially developed to be used together with the PBL 3771/1, Precision Stepper Motor driver in micro-stepping applications. The circuit has a set of input registers connected to an 8-bit data port for easy interfacing directly to a microprocessor. Two registers are used to store the data for each seven-bit DAC, the eighth bit being a sign bit (sign/ magnitude coding). A second set of registers are used for automatic fast/slow current decay control in conjunction with the PBL 3771/1, a feature that greatly improves high-speed micro-stepping performance. The PBM 3960/1 is fabricated in a highspeed CMOS process.



PBM3960 Microstepping Controller / Dual Digital to Analog Converter common ic chips
