Product Details:
Payment & Shipping Terms:
|
| Maximum Recurrent Peak Reverse Voltage: | 1000 V | Maximum RMS Voltage: | 700 V |
|---|---|---|---|
| Maximum DC Blocking Voltage: | 1000 V | Maximum Forward Voltage At 1 A: | 1.1 V |
| Typical Junction Capacitance: | 15 PF | Operating And Storage Temperature: | - 65 To + 150 ℃ |
| Highlight: | diode rectifier circuit,bridge rectifier circuit |
||

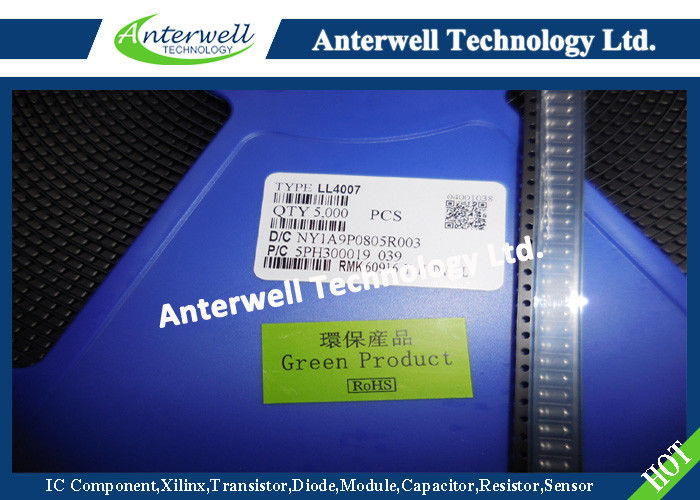

LL4001...LL4007
SURFACE MOUNT SILICON RECTIFIERS
Voltage Range - 50 to 1000 V
Forward Current - 1 A
Features
• Low cost
• Ideal for surface mounted applications
• Low leakage current
Mechanical data
• Case: MELF (DO-213AB) molded plastic body
• Mounting position: any
Absolute Maximum Ratings and Electrical characteristics (Ta = 25 ℃)
Ratings at 25 ℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
| Parameter | Symbols | LL4001 | LL4002 | LL4003 | LL4004 | LL4005 | LL4006 | LL4007 | Units |
| Maximum Recurrent Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum Average Forward Rectified Current at TA = 75 ℃ | IF(AV) | 1 | A | ||||||
| Peak Forward Surge Current 8.3 ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) | IFSM | 30 | A | ||||||
| Maximum Forward Voltage at 1 A | VF | 1.1 | V | ||||||
| Maximum Full Load Reverse Current (Full Cycle Average) | IR(AV) | 30 | µA | ||||||
|
Maximum DC Reverse Current TA = 25 ℃ at Rated DC Blocking Voltage TA = 125 ℃ |
IR |
5
50 |
µA | ||||||
| Typical Junction Capacitance 1) | CJ | 15 | pF | ||||||
| Maximum Thermal Resistance |
RθJL 2) RθJA 3) |
20 50 |
℃/W | ||||||
| Operating and Storage Temperature Range | Tj, Tstg | - 65 to + 150 | ℃ | ||||||
1) Measured at 1 MHz and applied reverse voltage of 4 V D.C
2) Thermal resistance from junction to terminal 6.0 mm3 copper pads to each terminal
3) Thermal resistance junction to terminal 6.0 mm3 copper pads to each terminal
