SN74LS374N LOW POWER SCHOTTKY Schottky Barrier Diode

China SN74LS374N LOW POWER SCHOTTKY Schottky Barrier Diode supplier

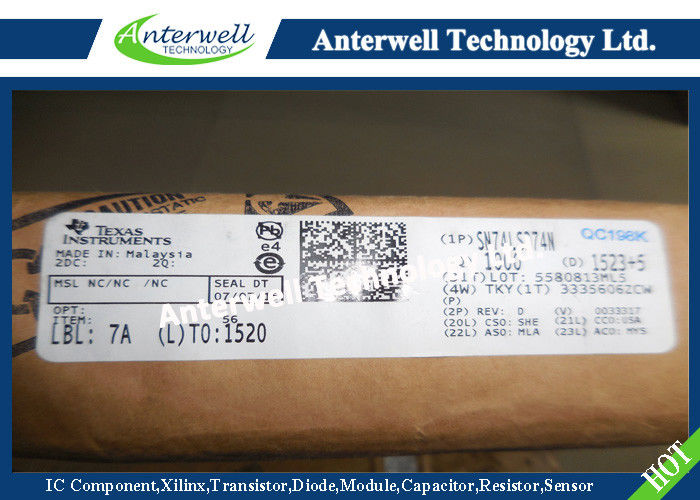

Large Image :  SN74LS374N LOW POWER SCHOTTKY Schottky Barrier Diode

Product Details:

Place of Origin: Original
Brand Name: TI
Certification: Original Factory Pack
Model Number: SN74LS374N

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 5200PCS
Contact Now
Detailed Product Description
Supply Voltage, VCC: 7 V Input Voltage, VI: 7 V
Off-state Output Voltage: 5.5 V Package Thermal Impedance,: 70 °C/W
Storage Temperature Range, Tstg: –65°C To 150°C
High Light:

diode rectifier circuit


signal schottky diode


SN74LS374N LOW POWER SCHOTTKY Schottky Barrier Diode

SN74LS374N LOW POWER SCHOTTKY Schottky Barrier Diode►Choice of Eight Latches or Eight D-Type Flip-Flops in a Single Package

►3-State Bus-Driving Outputs

►Full Parallel Access for Loading

►Buffered Control Inputs

►Clock-Enable Input Has Hysteresis to Improve Noise Rejection (’S373 and ’S374)

►P-N-P Inputs Reduce DC Loading on Data Lines (’S373 and ’S374)



These 8-bit registers feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The high-impedance 3-state and increased high-logic-level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pullup components. These devices are particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.


The eight latches of the ’LS373 and ’S373 are transparent D-type latches, meaning that while the enable (C or CLK) input is high, the Q outputs follow the data (D) inputs. When C or CLK is taken low, the output is latched at the level of the data that was set up.


The eight flip-flops of the ’LS374 and ’S374 are edge-triggered D-type flip-flops. On the positive transition of the clock, the Q outputs are set to the logic states that were set up at the D inputs.


Schmitt-trigger buffered inputs at the enable/clock lines of the ’S373 and ’S374 devices simplify system design as ac and dc noise rejection is improved by typically 400 mV due to the input hysteresis. A buffered output-control (OC) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly.


OC does not affect the internal operation of the latches or flip-flops. That is, the old data can be retained or new data can be entered, even while the outputs are off.


schematic of inputs and outputs

SN74LS374N LOW POWER SCHOTTKY Schottky Barrier Diode
