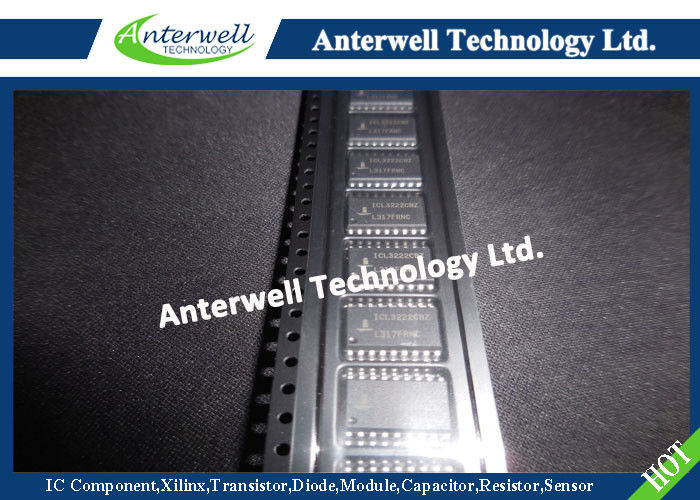

ICL3222CBZ led Circuit Board Chips One Microamp Supply Current / Transmitters / Receivers

ICL3222CBZ One Microamp Supply-Current, Transmitters/Receivers led circuit board

Features

• Pb-Free Plus Anneal Available as an Option (RoHS Compliant) (See Ordering Info)

• 15kV ESD Protected (Human Body Model)

• Drop in Replacements for MAX3221, MAX3222, MAX3223, MAX3232, MAX3241, MAX3243, SP3243

• ICL3221 is Low Power, Pin Compatible Upgrade for 5V MAX221

• ICL3222 is Low Power, Pin Compatible Upgrade for 5V MAX242, and SP312A

• ICL3232 is Low Power Upgrade for HIN232/ICL232 and Pin Compatible Competitor Devices

• RS-232 Compatible with VCC = 2.7V

• Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V

• Latch-Up Free

• On-Chip Voltage Converters Require Only Four External 0.1µF Capacitors

• Manual and Automatic Powerdown Features (Except ICL3232)

• Guaranteed Mouse Driveability (ICL324X Only)

• Receiver Hysteresis For Improved Noise Immunity

• Guaranteed Minimum Data Rate . . . . . . . . . . . . . 250kbps

• Guaranteed Minimum Slew Rate . . . . . . . . . . . . . . . 6V/µs

• Wide Power Supply Range . . . . . . . Single +3V to +5.5V

• Low Supply Current in Powerdown State. . . . . . . . . . .1µA

Applications

• Any System Requiring RS-232 Communication Ports

- Battery Powered, Hand-Held, and Portable Equipment

- Laptop Computers, Notebooks, Palmtops

- Modems, Printers and other Peripherals

- Digital Cameras - Cellular/Mobile Phones
