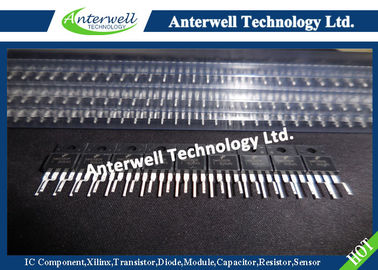

Low power high voltage Power Mosfet Transistor KA5M0380RYDTU Power Switch( FPS )

KA5M0380RYDTU Power Switch(FPS) low power mosfet high voltage power mosfet

Features

• Precision Fixed Operating Frequency (100/67/50kHz)

• Low Start-up Current(Typ. 100uA)

• Pulse by Pulse Current Limiting

• Over Current Protection

• Over Voltage Protection (Min. 25V)

• Internal Thermal Shutdown Function

• Under Voltage Lockout

• Internal High Voltage Sense FET

• Auto-Restart Mode

Applications

• SMPS for VCR, SVR, STB, DVD & DVCD

• SMPS for Printer, Facsimile & Scanner

• Adaptor for Camcorder

Description

The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC. Included PWM controller integrates the fixed frequency oscillator, the under voltage lock-out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shutdown protection, the over voltage protection, and the temperature compensated precision current sources for the loop compensation and the fault protection circuitry. Compared to a discrete MOSFET and a PWM controller or an RCCsolution, a Fairchild Power Switch(FPS) can reduce the total component count, design size and weight and at the same time increase efficiency, productivity, and system reliability. It has a basic platform well suited for the cost effective design in either a flyback converter or a forward converter
