P6KE15A Rectifier Diode Transient Voltage Suppressor Diodes

China P6KE15A Rectifier Diode Transient Voltage Suppressor Diodes supplier

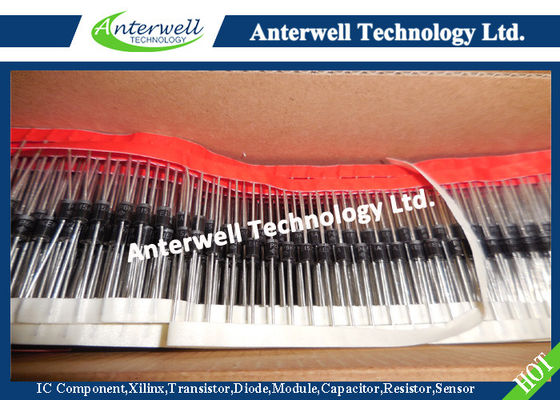

Large Image :  P6KE15A Rectifier Diode Transient Voltage Suppressor Diodes

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: P6KE15A

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 410000pcs
Contact Now
Detailed Product Description
Peak Power Dissipation: Minimum 600 Watts Steady State Power Dissipation: 5.0 Watts
Peak Forward Surge Current: 100 Amps Maximum Instantaneous Forward Voltage At 50.0A For Unidirectional Only: 3.5 / 5.0 Volts
Operating Temperature: -55 To + 175 ℃ Storage Temperature: -55 To + 175 ℃
High Light:

diode rectifier circuit

,

bridge rectifier circuit



Stock Offer (Hot Sell)

Part No. Quantity Brand D/C Package
PIC18F26K80-I/SO 5403 MICROCHIP 16+ SOP-28
PIC18F4550-I/PT 4333 MICROCHIP 14+ QFP44
PIC18F458-I/PT 3401 MICROCHIP 16+ QFP44
PIC18F45K20-I/PT 5471 MICROCHIP 13+ QFP44
PIC18F45K80-I/PT 8243 MICROCHIP 13+ TQFP-44
PIC18F4620-I/PT 2841 MICROCHIP 14+ TQFP-44
PIC18F4685-I/P 3005 MICROCHIP 13+ QFP44
PIC18F46K20-I/PT 5242 MICROCHIP 15+ QFP44
PIC18F46K22-I/PT 2422 MICROCHIP 15+ TQFP-44
PIC18F46K80-I/PT 7746 MICROCHIP 15+ TQFP-44
PIC18F6722-I/PT 3380 MICROCHIP 10+ QFP64
PIC18F67K22-I/PT 2275 MICROCHIP 12+ QFP64
PIC18F87J10-I/PT 3451 MICROCHIP 12+ TQFP-80
PIC18F87J50-I/PT 3690 MICROCHIP 13+ TQFP-80
PIC18F97J60-I/PF 2840 MICROCHIP 16+ QFP100
PIC18F97J60-I/PT 5330 MICROCHIP 16+ QFP100
PIC18LF4520-I/PT 5474 MICROCHIP 16+ QFP44
PIC24FJ256GA106-I/PT 8489 MICROCHIP 14+ QFP64
PIC24FJ256GB110-I/PF 4615 MICROCHIP 16+ QFP100
PIC24HJ128GP506-I/PT 1763 MICROCHIP 16+ QFP64
PIC24HJ256GP610A-I/PF 4766 MICROCHIP 13+ TQFP100
PIC24HJ64GP506-I/PT 4917 MICROCHIP 12+ QFP64
PIC32MX795F512L-80I/PF 1586 MICROCHIP 15+ TQFP100
PIC32MX795F512L-80I/PT 2611 MICROCHIP 15+ TQFP100
PKF4310PI 2416 ERICSSON 16+ MODULE
PKLCS1212E4001-R1 16023 MURATA 13+ SMD
PKM13EPYH4000-AO 6233 MURATA 10+ SMD
PL2303SA 12112 PROLIFIC 15+ SOP-8
PLVA650A 149000 NXP 14+ SOT-23
PM20CEE060-5 2962 MITSUBISH 16+ MODULE





P6KE SERIES

600 Watts Transient Voltage Suppressor Diodes



Features

  • UL Recognized File # E-96005
  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0
  • Exceeds environmental standards of MIL-STD-19500
  • 600W surge capability at 10 x 100 us waveform, duty cycle: 0.01%
  • Excellent clamping capability
  • Low zener impedance
  • Fast response time: Typically less than 1.0ps from 0 volts to VBR for unidirectional and 5.0 ns for bidirectional
  • Typical IR less than 1uA above 10V
  • High temperature soldering guaranteed: 260℃ / 10 seconds / .375”,(9.5mm) lead length / 5lbs.,(2.3kg) tension



Mechanical Data

  • Case: Molded plastic
  • Lead: Pure tin plated lead free,, solderable per MIL-STD-202, Method 208
  • Polarity: Color band denotes cathode except bipolar
  • Weight: 0.42gram



Maximum Ratings and Electrical Characteristics

Rating at 25 o C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number Symbol Value Units
Peak Power Dissipation at TA=25℃, Tp=1ms (Note 1) PPK Minimum 600 Watts

Steady State Power Dissipation at TL=75 ℃

Lead Lengths .375”, 9.5mm (Note 2)

PD 5.0 Watts

Peak Forward Surge Current, 8.3 ms Single Half

Sine-wave Superimposed on Rated Load (JEDEC method) (Note 3)

IFSM 100 Amps
Maximum Instantaneous Forward Voltage at 50.0A for Unidirectional Only (Note 4) VF 3.5 / 5.0 Volts
Operating and Storage Temperature Range TJ, TSTG -55 to + 175

Notes:

1. Non-repetitive Current Pulse Per Fig. 3 and Derated above TA=25o C Per Fig. 2.

2. Mounted on Copper Pad Area of 1.6 x 1.6” (40 x 40 mm) Per Fig. 4.

3. 8.3ms Single Half Sine-wave or Equivalent Square Wave, Duty Cycle=4 Pulses Per Minutes Maximum.

4. VF=3.5V for Devices of VBR ≤ 200V and VF=5.0V Max. for Devices of VBR>200V.



Devices for Bipolar Applications

1. For Bidirectional Use C or CA Suffix for Types P6KE6.8 through Types P6KE400.

2. Electrical Characteristics Apply in Both Directions.



                          DO-15
