MOC3052M Integrated Circuit Chip OPTOISOLATORS TRIAC DRIVERS

China MOC3052M Integrated Circuit Chip OPTOISOLATORS TRIAC DRIVERS supplier

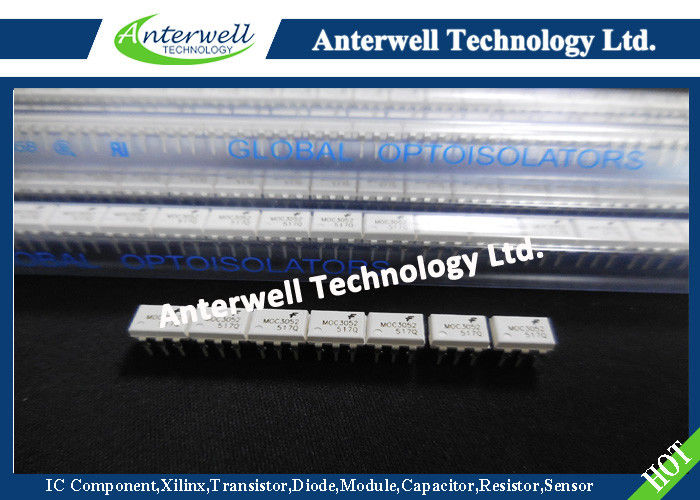

Large Image :  MOC3052M Integrated Circuit Chip OPTOISOLATORS TRIAC DRIVERS

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: MOC3052M

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 7700pcs
Contact Now
Detailed Product Description
Storage Temperature: -40 To +150 °C Operating Temperature: -40 To +85 °C
Lead Solder Temperature: 260°C For 10 Sec Junction Temperature: -40 To +100 °C
Isolation Surge Voltage: 7500 Vac(pk) Total Device Power Dissipation @ 25°C: 330 MW
High Light:

electronics ic chip

,

integrated circuit components



Stock Offer (Hot Sell)

Part No. Quantity Brand D/C Package
PCA9515APWR 17608 TI 10+ TSSOP-8
PCA9535CPW 15881 NXP 07+ TSSOP-24
PCA9535D 9775 NXP 06+ SOP-24
PCA9536D 7718 NXP 06+ SOP-8
PCA9632TK 7689 NXP 13+ SOP-8
PCF7936AS 3348 NXP 14+ SOT-385
PCF7946AT 4313 NXP 15+ SOP-14
PCF85162T 15952 NXP 16+ TSSOP-48
PCF8563P 17396 NXP 16+ DIP-8
PCF8563T/5 8292 NXP 16+ SOP-8
PCF8574AP 3803 NXP 15+ TSSOP-20
PCF8574P 5291 NXP 16+ DIP-16
PCF8576CT/1 12402 NXP 16+ SSOP-56
PCF8583T 13254 NXP 16+ SOP-8
PCF8593T 8742 PHILIPS 04+ SOP-8
PCM1804DBR 2863 TI 15+ SSOP-28
PCM4202DBR 2279 TI 15+ SSOP-28
PD69104B1ILQ 1812 MICROSEMI 14+ QFN48
PDS5100-13 18019 DIODES 14+ STD202
PDTC143ET 9000 NXP 14+ SOT-23
PE-68828NLS 3923 PULSE 16+ SOP-12
PEB3265HV1.5 7229 13+ QFP64
PEB4165TV1.1 9846 INFINEO 13+ HSOP20
PEMH9 8000 PHILIPS 06+ SOT666
PESD12VS5UD 21000 NXP 10+ SOT23-6
PESD3V3L5UF 63000 NXP 13+ SOT-886
PESD5V0F1USF 64000 NXP 15+ DSN0603-2
PESD5V0S1BA 21000 NXP 15+ SOD-323
PESD5V2S2UT 12000 NXP 16+ SOT-23
PGB1010603MRHF 61000 LITTEIFUS 15+ SMD0603





6-PIN DIP RANDOM-PHASE OPTOISOLATORS TRIAC DRIVERS (600 VOLT PEAK)

MOC3051-M  MOC3052-M



DESCRIPTION

The MOC3051-M and MOC3052-M consist of a AlGaAs infrared emitting diode optically coupled to a non-zero-crossing silicon bilateral AC switch (triac). These devices isolate low voltage logic from 115 and 240 Vac lines to provide random phase control of high current triacs or thyristors. These devices feature greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads.



FEATURES

• Excellent IFT stability—IR emitting diode has low degradation

• High isolation voltage—minimum 7500 peak VAC

• Underwriters Laboratory (UL) recognized—File #E90700

• 600V peak blocking voltage

• VDE recognized (File #94766)

  - Ordering option V (e.g. MOC3052V-M)



APPLICATIONS

• Solenoid/valve controls

• Lamp ballasts

• Static AC power switch

• Interfacing microprocessors to 115 and 240 Vac peripherals

• Solid state relay

• Incandescent lamp dimmers

• Temperature controls

• Motor controls



ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted)

Parameters Symbol Device Value Units

TOTAL DEVICE

Storage Temperature



TSTG



All



-40 to +150



°C

Operating Temperature TOPR All -40 to +85 °C
Lead Solder Temperature TSOL All 260 for 10 sec °C
Junction Temperature Range TJ All -40 to +100 °C
Isolation Surge Voltage(3) (peak AC voltage, 60Hz, 1 sec duration) VISO All 7500 Vac(pk)
Total Device Power Dissipation @ 25°C PD All 330 mW
Derate above 25°C 4.4 mW/°C

EMITTER

Continuous Forward Current



IF



All



60



mA

Reverse Voltage VR All 3 V
Total Power Dissipation 25°C Ambient PD All 100 mW
Derate above 25°C 1.33 mW/°C

DETECTOR

Off-State Output Terminal Voltage



VDRM



All



600



V

Peak Repetitive Surge Current (PW = 100 ms, 120 pps) ITSM All 1 A
Total Power Dissipation @ 25°C Ambient PD All 300 mW
Derate above 25°C 4 mW/°C



PACKAGE

MOC3052M Integrated Circuit Chip OPTOISOLATORS TRIAC DRIVERS



MOC3052M Integrated Circuit Chip OPTOISOLATORS TRIAC DRIVERS
