SRDA05-4 Electrnic IC Chips Integrated Circuit IC Components

China SRDA05-4 Electrnic IC Chips Integrated Circuit IC Components supplier

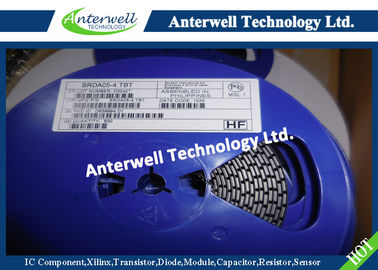

Large Image :  SRDA05-4 Electrnic IC Chips Integrated Circuit IC Components

Product Details:

Place of Origin: THAILAND
Brand Name: SEMTECH
Certification: Original Factory Pack
Model Number: SRDA05-4

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: 500/REEL
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 36500PCS
Contact Now
Detailed Product Description
Temperature Range: -55°C To +125°C Payment Term: T/T, Paypal, Western Union
Voltage: 1.5V Current: 0.6A
Package: SOP-8 Factory Package: 500/REEL
High Light:

electronics ic chip

,

integrated circuit ic

SPC6332S36RGB Electrnic IC Chips Integrated Circuit IC Components

Low Capacitance TVS Diode Array



DESCRIPTION



RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SRDA series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.



 The unique design incorporates surge rated, low capacitance steering diodes and a TVS diode in a single package. During transient conditions, the steering diodes direct the transient current to ground via the internal low voltage TVS.



The TVS diode clamps the transient voltage to a safe level. The low capacitance array configuration allows the user to protect up to four high-speed data lines. The SRDA05-4 may be used to protect lines operating up to 5 volts while the SRDA12-4 may be used on lines operating up to 12 volts.



These devices are in a 8-pin SOIC package. They are available with a SnPb or RoHS/WEEE compliant matte tin lead finish. The high surge capability (Ipp=25A, tp=8/20μs) means it can be used in high threat environments in applications such as CO/CPE equipment, telecommunication lines, and video lines.



A part  of stock list



C.I MM74HC164MX FSC P0552AD/P9FAD SOP-14
DIODO BYG23M-E3/TR VISHAY 1632 SMA
DIODO SML4742A-E3/61 VISHAY 1632/12 SMA
DIODO BYG23M-E3/TR VISHAY 1632 SMA
DIODO SML4742A-E3/61 VISHAY 1632/12 SMA
RES 2010 330R 5% CRCW2010330RJNEF VISHAY 1612 SMD2010
RES 2010 68K 5% CRCW201068K0JNEF VISHAY 1612 SMD2010
C.I MCP6S26-I/SL MICROCHIP 16255C4 SOP-14
ACOPLADOR. PC817A SHARP 2016.08.10/H33 DIP-4
TRANS 2SS52M Honeywell 2SSM/523-LF TO-92
C.I SCC2691AC1D24 NXP 1149+ SOP-24
C.I TP3057WM TI XM33AF SOP-16
C.I CD14538BE TI 33ADS8K DIP-16
C.I CL2N8-G MICROCHIP CL2C SOT-89
C.I SN75179BP TI 57C50DM DIP-8
C.I L6219DS ST 135 SOP-24
CAP 1210 470PF 1KV NP0 CL32C471JIINNNE SAMSUNG AC7JO2H SMD1210
INDUTOR 3.3UH SLF6045T-3R3N2R8-3PF TDK YA16H0945122/3R3 SMD6045
CAP ELCO SMD 2.2UF 50V EEE-1HA2R2SR PAN Y1628F843536/2.2/50V/SYK SMD4*5.4
C.I 24LC256-I/SN MICROCHIP 1636M6G SOP-8
CAP ELCO SMD 150UF 25V UCD1E151MNL1GS NICHICON 160602/150/25V/H72 SMD8*10.5
RES RC0805JR-0727RL YAGEO 1538 SMD0805
C.I SN75240PW TI 11/A75240 MSOP-8
RES RC0805JR-0715KL YAGEO 1637 SMD0805
CAP CER 0805 1UF 10V X7R LMK212BJ105MG-T TAIYOYUDEN 1608 SMD0805
CAP CER 0805 4.7UF 50V X5R CL21A475KBQNNNE SAMSUNG AC7JO2H SMD0805
RES 0805 28K7 RC0805FR-0728K7L 1% YAGEO 1638 SMD0805
RES 3K3 5% CASE 0805RC0805JR-073K3L YAGEO 1623 SMD0805
TRIAC BTA26-600BRG ST 628 TO-3P
CAP 0805 330NF 100V C2012X7S2A334K125AB TDK IB16F15763SD SMD0805





Features

Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20μs) ‹

Array of surge rated diodes with internal TVS diode

Protects four I/O lines

‹ Low capacitance (<15pF) for high-speed interfaces ‹

Low operating and clamping voltages ‹ Solid-state technology



Mechanical Characteristics

‹ JEDEC SOIC-8 package

‹ Lead Finish: SnPb or Matte Sn ‹

Molding compound flammability rating: UL 94V-0

‹ Marking : Part number, date code, logo ‹

Packaging : Tape and Reel per EIA 481



APPLICATIONS



‹ USB Power and Data Line Protection ‹

T1/E1 secondary IC Side Protection ‹

T3/E3 secondary IC Side Protection

‹ HDSL, SDSL secondary IC Side Protection ‹

Video Line Protection

‹ Microcontroller Input Protection ‹

Base stations ‹ I 2C Bus Protection



Pin Arrangement
