BC327-40 Power Mosfet Transistor PNP general purpose transistor

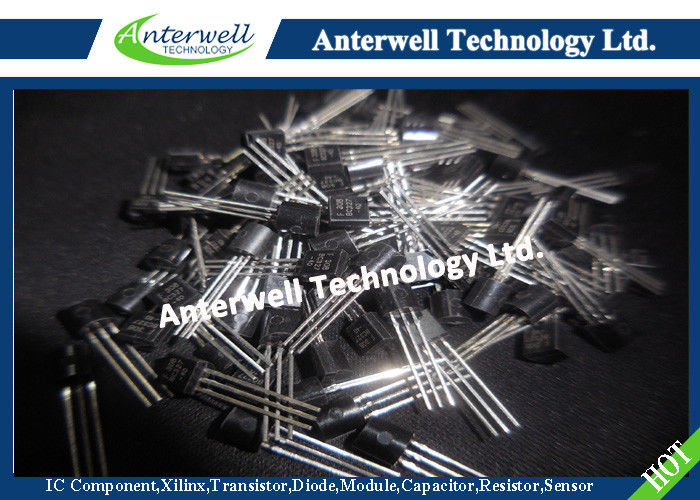

: Large Image : BC327-40 Power Mosfet Transistor PNP general purpose transistor

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BC327-40

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8600pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	−50 V	Collector-emitter Voltage:	−45 V
Emitter-base Voltage:	−5 V	Collector Current (DC):	−500 MA
Total Power Dissipation:	625 MW	Storage Temperature:	−65 To +150 °C
High Light:	power mosfet ic , silicon power transistors

Stock Offer (Hot Sell)

Part No.

Quantity

Brand

D/C

Package

ESP8266EX	5982	ESPRESSIF	14+	QFN32
ETC1.6-4-2-3TR	4563	M/A-COM	15+	SMD
EX5418-EG11	7577	EETI	13+	QFN
EXC7900-SG11	4967	EETI	13+	QFN
EXCCET103U	9515	PANASONIC	16+	SMD
EZ80190AZ050SG	2645	ZILOG	05+	QFP
F2405S-1WR2	4629	MORNSUN	16+	SIP
F65550B	1918	CHIPS	13+	QFP
FA5518N-A2-TE1	9586	FUJITSU	14+	SOP-8
FAN1112DX	20504	FAIRCHILD	16+	TO-252
FAN3225TMPX	3081	FAIRCHILD	16+	DFN-8
FAN3225TMX	5365	FAIRCHILD	13+	SOP-8
FAN6862TY	13420	FAIRCHILD	16+	SSOT-6
FAN9612MX	7548	FAIRCHILD	12+	SOP-8
FC-135 32.7680KA	4093	EPSON	13+	SMD
FCB11N60TM	12339	FAIRCHILD	15+	TO-263
FCX495TA	46000	ZETEX	14+	SOT-89
FDB3632	8071	FAIRCHILD	14+	TO-263
FDC6330L	7527	FAIRCHILD	04+	SOT-163
FDC6420C	20575	FAIRCHILD	14+	SOT-163
FDD4141	9286	FAIRCHILD	16+	TO-252
FDD850N10L	20646	FAIRCHILD	11+	TO-252
FDH055N15A	7591	FAIRCHILD	15+	TO-247
FDL100N50F	3233	FAIRCHILD	13+	TO-264
FDLL4148	25000	FAIRCHILD	15+	LL34
FDMS3604S	5436	FAIRCHILD	16+	QFN
FDMS86500L	8142	FAIRCHILD	13+	QFN-8
FDMS86520L	7901	FAIRCHILD	15+	QFN
FDMS8672S	6190	FAIRCHILD	16+	QFN-8
FDMS8692	20717	FAIRCHILD	16+	QFN

BC327 PNP general purpose transistor

FEATURES

• High current (max. 500 mA)

• Low voltage (max. 45 V).

APPLICATIONS

• General purpose switching and amplification, e.g. driver and output stages of audio amplifiers.

DESCRIPTION

PNP transistor in a TO-92; SOT54 plastic package. NPN complement: BC337.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CBO	collector-base voltage	open emitter	−	−50	V
V_CEO	collector-emitter voltage	open base	−	−45	V
V_EBO	emitter-base voltage	open collector	−	−5	V
I_C	collector current (DC)		−	−500	mA
I_CM	peak collector current		−	−1	A
I_BM	peak base current		−	−200	mA
P_tot	total power dissipation	T_amb ≤ 25 °C; note 1	−	625	mW
T_stg	storage temperature		−65	+150	°C
T_j	junction temperature		−	150	°C
T_amb	operating ambient temperature		−65	+150	°C

Note 1. Transistor mounted on an FR4 printed-circuit board.

Fig.1 Simplified outline (TO-92; SOT54) and symbol.
