STK4050V power mosfet module Power Amplifier 55 kΩ Input resistance

China STK4050V power mosfet module Power Amplifier 55 kΩ Input resistance supplier

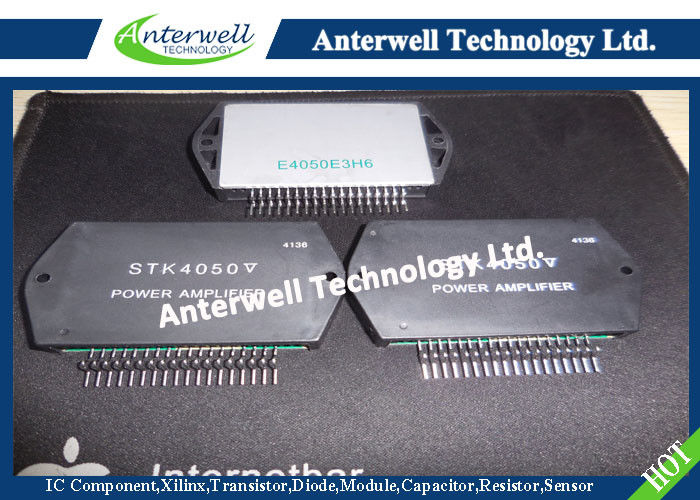

Large Image :  STK4050V power mosfet module Power Amplifier 55 kΩ Input resistance

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: STK4050V

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 6500pcs
Contact Now
Detailed Product Description
Maximum Supply Voltage: ± 95 V Thermal Resistance: 0.95 °C/W
Junction Temperature: 150 °C Operating Substrate Temperature: 125 °C
Storage Temperature: –30 To +125 °C Recommended Supply Voltage: ± 66 V
Load Resistance: 8 Ω Input Resistance: 55 KΩ
High Light:

power mosfet ic

,

silicon power transistors



Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
LM3916N 1100 NSC 14+ DIP-18
MSP430F1491IPMR 1100 TI 14+ QFP
XC4VSX35-10FFG668I 1100 XILINX 14+ BGA
SEM3040 1102 SEM 16+ SOP-8
DL4744A 1110 PANJIT 16+ SMD
ADS5400IPZP 1117 TI 13+ QFP
HC4094 1125 NXP 15+ SSOP16
BTA26-600B 1130 ST 16+ TO3P
SN74LS574N 1132 TI 16+ DIP
AM27C256-150DC 1150 AMD 14+ CDIP-28
BDW42 1158 ON 14+ TO-220
74F138DR 1184 TI 14+ SOP
TL2844BDR-8 1199 TI 16+ SOP-8
2SK1544 1200 TOSHIBA 16+ TO3PL
30EPH06PBF 1200 VISHAY 13+ TO-247
74HCT367D 1200 PHI 15+ SOP
ADUM5402ARWZ 1200 AD 16+ SOP
ADV7180BSTZ 1200 AD 16+ QFP
AF4825PS 1200 ANACHIP 14+ SOP-8
AS15-F 1200 E-CMOS 14+ QFP
B58290 1200 14+ SOP-24
CAT28F010G-12 1200 CSI 16+ PLCC32
CLC007BMA 1200 NS 16+ SOP8
D8020L 1200 TECCOR 13+ TO-220
DS1643-120 1200 DALLAS 15+ DIP
DS1820 1200 DALLAS 16+ TO92
ICL7665SCPA 1200 INTERSIL 16+ DIP-8
IRFB20N50KPBF 1200 VISHAY 14+ TO-220AB
ISQ201 1200 ISOCOM 14+ DIP-16
L4947PD 1200 ST 14+ SOP20





STK4050V

AF Power Amplifier (Split Power Supply) (200 W min, THD = 0.08%)



Features

• Compact packaging supports slimmer set designs

• Series designed from 20 up to 100 W (200 W) and pincompatibility (120 to 200 W have 18 pins)

• Simpler heat sink design facilitates thermal design of slim stereo sets

• Current mirror circuit application reduce distortion to 0.08 %

• Supports addition of electronic circuits for thermal shutdown and load-short protection circuit as well as pop noise muting which occurs when the power supply switch is turned on and off.



Maximum Ratings at Ta = 25°C

Parameter Symbol Rating Unit
Maximum supply voltage VCC max ± 95 V
Thermal resistance θj-c 0.95 °C/W
Junction temperature Tj 150 °C
Operating substrate temperature Tc 125 °C
Storage temperature Tstg –30 to +125 °C



Package Dimensions

unit: mm

4051A

STK4050V power mosfet module Power Amplifier 55 kΩ Input resistance



Application Circuit: 200W min Single Channel AF Power Amplifier

STK4050V power mosfet module Power Amplifier 55 kΩ Input resistance
