INA118U Precision, Low Power INSTRUMENTATION AMPLIFIER power ic chip

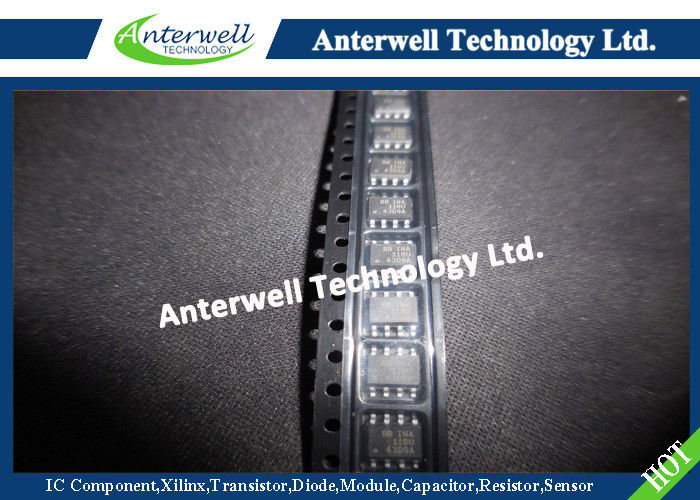

: Large Image : INA118U Precision, Low Power INSTRUMENTATION AMPLIFIER power ic chip

Product Details:

Place of Origin:	Philippines
Brand Name:	TI
Certification:	Original Factory Pack
Model Number:	INA118U

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	600PCS

Contact Now

Detailed Product Description

Supply Voltage:	±18V	Analog Input Voltage Range:	. ±40V
Output Short-Circuit (to Ground):	Continuous	Operating Temperature:	–40°C To +125°C
Storage Temperature:	–40°C To +125°C
High Light:	integrated circuit ic , integrated circuit components

STOCK LIST

UPA1716	3200	NEC	16+	SOP-8
1N6303A	3201	VISHAY	16+	DO-201
ADC0801LCN	3201	NS	14+	DIP-20
ST3485EBDR	3202	ST	16+	SOP8
L6219	3205	ST	16+	DIP24/SOP24
TPS3828-50DBVR	3210	TI	15+	SOT23-5
LF156H	3211	NS	16+	CAN
TPS3828-50	3211	TI	15+	SOT-23
TIP100	3220	ST	12+	TO-220
XC5VLX50T-1FFG665C	3222	XILINX	16+	BGA
KPC357NT	3225	COSMO	12+	SOP-4
DS3696N DIP	3240	NS	16+	DIP-8
ADP3338AKC-1.8	3250	AD	16+	SOT-223
BDW93C	3250	ST	16+	TO-220
LM2575S-5.0	3250	NS	16+	TO-263
ADP3338AKC-3.3	3300	AD	16+	SOT-223
AT28C64B-15SI	3310	ATMEL	14+	SOP28
MMJT9435	3333	ON	16+	SOT223
K6X1008C2D-BF55	3336	SAMSUNG	16+	SOP32
IR2156S	3369	IR	15+	SMD-14
HM628512CLP-5	3400	HITACHI	16+	DIP32

INA118U

Precision, Low Power INSTRUMENTATION AMPLIFIER power ic chip

INA118U Precision, Low Power INSTRUMENTATION AMPLIFIER power ic chip FEATURES
● LOW OFFSET VOLTAGE: 50µV max
● LOW DRIFT: 0.5µV/°C max
● LOW INPUT BIAS CURRENT: 5nA max
● HIGH CMR: 110dB min
● INPUTS PROTECTED TO ±40V
● WIDE SUPPLY RANGE: ±1.35 to ±18V
● LOW QUIESCENT CURRENT: 350µA
● 8-PIN PLASTIC DIP, SO-8

APPLICATIONS
● BRIDGE AMPLIFIER
● THERMOCOUPLE AMPLIFIER
● RTD SENSOR AMPLIFIER
● MEDICAL INSTRUMENTATION
● DATA ACQUISITION

DESCRIPTION
The INA118 is a low power, general purpose instrumentation amplifier offering excellent accuracy. Its versatile 3-op amp design and small size make it ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain (70kHz at G = 100).

A single external resistor sets any gain from 1 to 10,000. Internal input protection can withstand up to ±40V without damage.

The INA118 is laser trimmed for very low offset voltage (50µV), drift (0.5µV/°C) and high common-mode rejection (110dB at G = 1000). It operates with power supplies as low as ±1.35V, and quiescent current is only 350µA—ideal for battery operated systems.

The INA118 is available in 8-pin plastic DIP, and SO-8 surface-mount packages, specified for the –40°C to +85°C temperature range.
