BZG03C30-TR Rectifier Diode Zener Diodes power rectifier diode

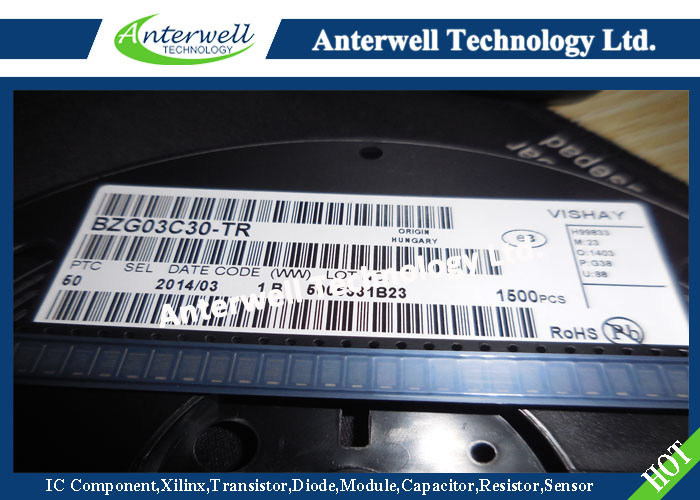

: Large Image : BZG03C30-TR Rectifier Diode Zener Diodes power rectifier diode

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BZG03C30-TR

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8600pcs

Contact Now

Detailed Product Description

Non Repetitive Peak Surge Power Dissipation:	600 W	Junction Temperature:	150 °C
Storage Temperature Range:	- 65 To + 150 °C	Junction Lead:	25 K/W
Forward Voltage:	1.2 V	Voltage Range:	10 V To 270 V
High Light:	bridge rectifier circuit , signal schottky diode

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

SN74HC138N	3200	TI	16+	DIP
SN74LV138AD	3200	TI	16+	SOP16
W25Q32BVSSIG	3200	WINBOND	13+	SOP-8
AD9246	3210	AD	15+	QFP
UA78L05ACDR	3210	TI	16+	SOP8
AT45DB642D-CNU	3215	ATMEL	16+	QFN
SUM65N20	3220	VISHAY	14+	TO-263
TPS61220DCKR	3220	TI	14+	SC70-6
HCPL-V601	3224	AVAGO	14+	SOP8
MM74HC126MX	3250	FAIRCHILD	16+	SOP-14
TDA4863-2G	3250		16+	SOP-8
PIC12C508A-04I/SN	3300	MICROCHI	13+	SOP8
TPS3825-50DBVR	3322	TI	15+	SOT23-5
PC844	3330	SHARP	16+	DIP16
FDS9435	3333	FSC	16+	SOP8
MAX491CSD	3333	MAXIM	14+	SOP-14
MIC29150-12BT	3333	MICREL	14+	TO-220
MT8816	3344	ZARLINK	14+	PLCC
SMCJ54CA	3344	VISHAY	16+	DO-214AA
HEF4094BT	3368	NXP	16+	SO16
ACPL-P480-500E	3400	AVAGO	13+	SOP
ATXMEGA128A1-AU	3400	ATMEL	15+	QFP
IRFR4105TR	3400	IR	16+	TO-252
PC922	3400	SHARP	16+	DIP-8
SN7407N	3400	TI	14+	DIP14
74HC240D	3410	PHI	14+	SOP
IR2153S	3412	IR	14+	SOP8
ADM3251EAR	3420	AD	16+	SOP
FDS9431A	3420	FAIRCHILD	16+	SOP-8
MUR1660G	3420	ON	13+	TO-220

BZG03C-Series

Zener Diodes

Features BZG03C30-TR Rectifier Diode Zener Diodes power rectifier diode

• Glass passivated junction

• High reliability

• Voltage range 10 V to 270 V

• Fits onto 5 mm SMD footpads

• Wave and reflow solderable

• Lead (Pb)-free component

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

Applications

Voltage stabilization

Mechanical Data

Case: DO-214AC

Weight: approx. 77 mg

Packaging Codes/Options:

TR / 1.5 k 7 " reel

TR3 / 6 k 13 " reel 6 k/box

Absolute Maximum Ratings T_amb = 25 °C, unless otherwise specified

Parameter	Test condition	Symbol	Value	Unit
Power dissipation	R_thJA < 25 K/W, T_amb = 100 °C	P_diss	3	W
Power dissipation	R_thJA < 100 K/W, T_amb = 50 °C	P_diss	1.26	W
Non repetitive peak surge power dissipation	tp = 100 µs sq.pulse, Tj = 25 °C prior to surge	P_ZSM	600	W
Junction temperature		T_j	150	°C
Storage temperature range		T_stg	- 65 to + 150	°C
