ATMEGA8-16PU performance integrated programmed Fully Static Operation

China ATMEGA8-16PU performance integrated programmed Fully Static Operation supplier

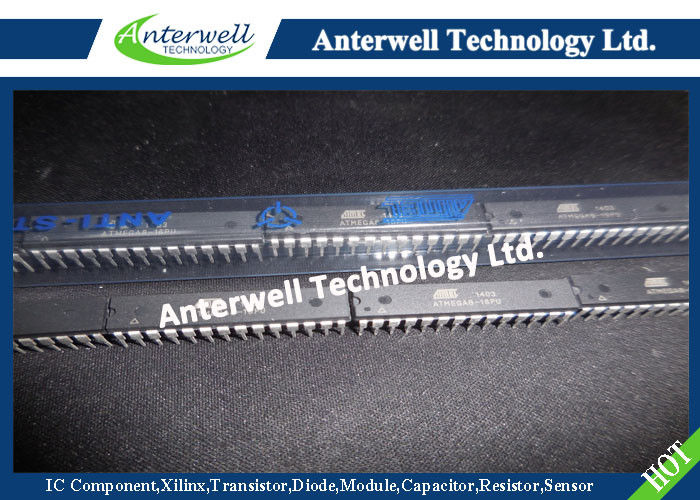

Large Image :  ATMEGA8-16PU performance integrated programmed Fully Static Operation

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: ATMEGA8-16PU

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 7500pcs
Contact Now
Detailed Product Description
Operating Temperature: -55°C To +125°C Storage Temperature: -65°C To +150°C
Voltage On Any Pin Except RESET With Respect To Ground: -0.5V To VCC+0.5V Voltage On RESET With Respect To Ground: -0.5V To +13.0V
Maximum Operating Voltage: 6.0V DC Current Per I/O Pin: 40.0 MA
High Light:

programming ic chips

,

programmable audio chip



Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
PIC18F1220-I/P 2100 MICROCHIP 14+ DIP-18
PIC18F14K50-I/SO 2100 MICROCHIP 14+ SOP20
SB3100 2100 PANJIT 14+ D0-201
SMAJ6.0A-E3 2100 VISHAY 16+ DO-214AC
TIP30C 2100 ST/FSC 16+ TO-220
TM1628 2100 TM 13+ SOP28
STF13NM60N 2101 ST 15+ TO-220
HD74LS48P 2102 HIT 16+ DIP
RT424024 2102 AMPTYCO 16+ DIP
1.5KE250CA 2110 VISHAY 14+ DO-201AD
MMA7455LR1 2110 FREESCAL 14+ LGA14
EL4583 2111 ELANTES 14+ SOP16
OPA2227U 2111 TI 16+ SOP8
TDA2030 2112 ST 16+ TO-220
AD7780BRUZ 2120 AD 13+ TSSOP
ADS1256IDBR 2120 TI 15+ SSOP28
PIC16F685-I/P 2120 MICROCHIP 16+ DIP
RHRG75120 2130 FSC 16+ TO-3P
DS2Y-S-24V 2140 Panasonic 14+ DIP
AX88796BLF 2145 ASIX 14+ QFP
KA2281 2150 SAMSUNG 14+ DIP16
SN75HVD3082EP 2155 TI 16+ DIP8
HCPL0630 2166 AVAGO 16+ SOP-8
2N2222 ST 2210 ST 13+ TO-18
VND5160JTR-E 2210 ST 15+ SSOP12
PN2222A 2240 NS 16+ TO-92
UZ1084L-3.3V 2242 UTC 16+ TO263
IS61WV25616BLL-10TLI 2250 ISSI 14+ TSSOP
BTA24-600BW 2258 ST 14+ TO-220
74HC86D 2285 NXP 14+ SOP




ATMEGA8-16PU Programmable IC Chips In-System Programmable Flash

Features


• High-performance, Low-power AVR® 8-bit Microcontroller


• Advanced RISC Architecture
  – 130 Powerful Instructions
  – Most Single-clock Cycle Execution
  – 32 x 8 General Purpose Working Registers
  – Fully Static Operation
  – Up to 16 MIPS Throughput at 16 MHz
  – On-chip 2-cycle Multiplier


• High Endurance Non-volatile Memory segments
  – 8K Bytes of In-System Self-programmable Flash program memory
  – 512 Bytes EEPROM
  – 1K Byte Internal SRAM
  – Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
  – Data retention: 20 years at 85°C/100 years at 25°C(1)
  – Optional Boot Code Section with Independent Lock Bits In-System Programming
     by On-chip Boot Program True Read-While-Write Operation
  – Programming Lock for Software S
ecurity


• Peripheral Features
  – Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode
  – One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
  – Real Time Counter with Separate Oscillator
  – Three PWM Channels
  – 8-channel ADC in TQFP and QFN/MLF package Eight Channels 10-bit Accuracy
  – 6-channel ADC in PDIP package Six Channels 10-bit Accuracy
  – Byte-oriented Two-wire Serial Interface
  – Programmable Serial USART
  – Master/Slave SPI Serial Interface
  – Programmable Watchdog Timer with Separate On-chip Oscillator
  – On-chip Analog Comparator


• Special Microcontroller Features
  – Power-on Reset and Programmable Brown-out Detection
  – Internal Calibrated RC Oscillator
  – External and Internal Interrupt Sources
  – Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby


• I/O and Packages
  – 23 Programmable I/O Lines
  – 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF


• Operating Voltages
  – 2.7 - 5.5V (ATmega8L)
  – 4.5 - 5.5V (ATmega8)


• Speed Grades
  – 0 - 8 MHz (ATmega8L)
  – 0 - 16 MHz (ATmega8)


• Power Consumption at 4 Mhz, 3V, 25°C
  – Active: 3.6 mA
  – Idle Mode: 1.0 mA
  – Power-down Mode: 0.5 µA

Absolute Maximum Ratings*
Operating Temperature.................................. -55°C to +125°C
Storage Temperature ..................................... -65°C to +150°C
Voltage on any Pin except RESET
  with respect to Ground ................................-0.5V to VCC+0.5V


Voltage on RESET with respect to Ground......-0.5V to +13.0V
Maximum Operating Voltage ............................................ 6.0V
DC Current per I/O Pin ............................................... 40.0 mA
DC Current VCC and GND Pins................................ 300.0 mA

*NOTICE: Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Pin Configurations
                           PDIP
ATMEGA8-16PU performance integrated programmed Fully Static Operation

                          TQFP Top View
ATMEGA8-16PU performance integrated programmed Fully Static Operation

                                      MLF Top View
ATMEGA8-16PU performance integrated programmed Fully Static Operation

Overview
The ATmega8 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Block Diagram
ATMEGA8-16PU performance integrated programmed Fully Static Operation
