MX25L12873FM2I-10G Programmable IC Chips 128M - BIT Flash Ic Integrated circuit Chip

China MX25L12873FM2I-10G Programmable IC Chips 128M - BIT Flash Ic Integrated circuit Chip supplier

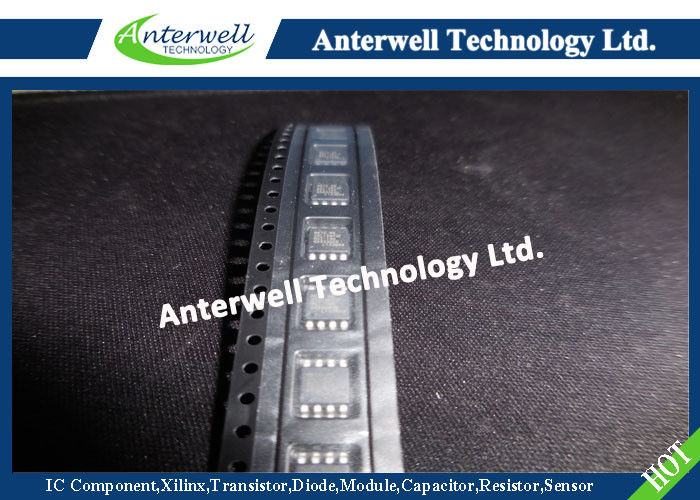

Large Image :  MX25L12873FM2I-10G Programmable IC Chips 128M - BIT Flash Ic Integrated circuit Chip

Product Details:

Place of Origin: Original
Brand Name: MXIC
Certification: Original Factory Pack
Model Number: MX25L12873FM2I-10G

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiation
Packaging Details: REEL
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 45000PCS
Contact Now
Detailed Product Description
Temperature Range: -65°C To +150°C Payment Term: T/T, Paypal, Western Union
Voltage: 3.3V Current: 4.5A
Package: SOP-16 Factory Package: REEL


MX25L12873FM2I-10G Programmable IC Chips 128M - BIT Flash Ic Integrated circuit Chip

MX25L12873FM2I-10G

128M-BIT [x 1] CMOS SERIAL FLASH



GENERAL

• Serial Peripheral Interface compatible -- Mode 0 and Mode 3

• 134,217,728 x 1 bit structure

• 4096 equal sectors with 4K byte each 256 equal sectors with 64K byte each

- Any sector can be erased

• Single Power Supply Operation

- 2.7 to 3.6 volt for read, erase, and program operations

• Latch-up protected to 100mA from -1V to Vcc +1V

• Low Vcc write inhibit is from 1.5V to 2.5V

PERFORMANCE

• High Performance - Fast access time: 50MHz serial clock (30pF + 1TTL Load)

- Fast program time: 1.4ms/page (typical, 256-byte per page) and 9us/byte (typical)

- Fast erase time: 60ms/sector (4KB per sector), 0.7s/block (64KB per block) and 80s/chip

- Acceleration mode:

- Chip erase time: 50s (typical)

• Low Power Consumption

- Low active read current: 25mA (max.) at 50MHz

- Low active programming current: 20mA (max.)

- Low active erase current: 20mA (max.)

- Low standby current: 20uA (max.)

- Deep power-down mode 20uA (max.)

• Typical 100,000 erase/program cycle

• 10 years data retention

SOFTWARE FEATURES

• Input Data Format - 1-byte Command code

• Advanced Security Features

- Block lock protection The BP0-BP3 status bit defines the size of the area to be software protection against program and erase instructions

- Additional 512-bit secured OTP for unique identifier

• Auto Erase and Auto Program Algorithm

- Automatically erases and verifies data at selected sector

- Automatically programs and verifies data at selected page by an internal algorithm that automatically times the program pulse widths (Any page to be programed should have page in the erased state first)

• Status Register Feature

• Electronic Identification

- JEDEC 1-byte manufacturer ID and 2-byte Device ID

- RES command, 1-byte Device ID

- REMS command, ADD=00H will output the manufacturer's ID first and ADD=01H will output device ID first



A part  of stock list



CAP 0603 56PF 16V 0603N560K160CT WALSIN 16/04/27 SMD0603
C.I SP3203ECY-L/TR SIPEX 0616 TSSOP-20
C.I AT89S52-24PU ATMEL 1602 DIP-40
DIODO M7 MIC 1625 SMA
DIODO BZX84C15LT1G ON 1630/Y4 SOT-23
MMBD4148-7-F DIODES 1617/KA2 SOT-23
TRANS MMBTA42LT1G ON 1635/1D SOT-23
DIODO. BYG20J-E3/TR VISHAY 1632 SMA
TRANS NDD04N60ZT4G ON 1143/A43/4N60ZG TO-252
C.I UBA3070T NXP 1333 SOP-8
CAP 0402 1UF 6.3V X7R GRM155R70J105KA12D MURATA IA6026DP4 SMD0402
CAP 0402 47NF 25V X7R GRM155R71E473JA88D MURATA IA6026DP4 SMD0402
CAP 0402 100NF 16V X7R 55 GRM155R71C104JA88D MURATA IA6009DI8 SMD0402
CAP ELETR 470UF 16V RF1C471MTBF35008012 NANTUNG
CAP 0805 10UF 6,3V X5R JMK212BJ106KD-T TAIYOYUDEN 1609 SMD0805
OPTO 4N25M FSC 637Q DIP-6
TRIAC BT151-500R NXP 603 TO-220
