2SC2229-Y power mosfet ic Power Mosfet Transistor Silicon NPN Triple Diffused Type (PCT Process)

China 2SC2229-Y power mosfet ic Power Mosfet Transistor Silicon NPN Triple Diffused Type (PCT Process) supplier

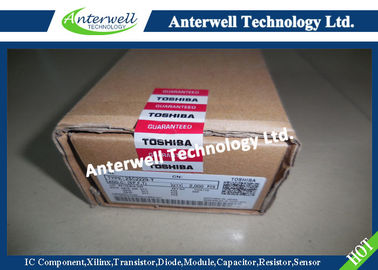

Large Image :  2SC2229-Y power mosfet ic Power Mosfet Transistor Silicon NPN Triple Diffused Type (PCT Process)

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: 2SC2229-Y

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8600pcs
Contact Now
Detailed Product Description
Collector-base Voltage: 200 V Collector-emitter Voltage: 150 V
Emitter-base Voltage: 5 V Collector Current: 50 MA
Collector Power Dissipation: 800 MW Storage Temperature Range: −55 To 150 °C
High Light:

power mosfet ic

,

multi emitter transistor

TOSHIBA Transistor Silicon NPN Triple Diffused Type (PCT Process)

2SC2229



Black and White TV Video Output Applications

High-Voltage Switching Applications

Driver Stage Audio Amplifier Applications



• High breakdown voltage: VCEO = 150 V (min)

• Low output capacitance: Cob = 5.0 pF (max)

• High transition frequency: fT = 120 MHz (typ.)



Absolute Maximum Ratings (Ta = 25°C)

Characteristics Symbol Rating Unit
Collector-base voltage VCBO 200 V
Collector-emitter voltage VCEO 150 V
Emitter-base voltage VEBO 5 V
Collector current IC 50 mA
Base current IB 20 mA
Collector power dissipation PC 800 mW
Junction temperature Tj 150 °C
Storage temperature range Tstg −55 to 150 °C

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).



2SC2229-Y power mosfet ic Power Mosfet Transistor Silicon NPN Triple Diffused Type (PCT Process)

  Weight: 0.36 g (typ.)



Marking

2SC2229-Y power mosfet ic Power Mosfet Transistor Silicon NPN Triple Diffused Type (PCT Process)



2SC2229-Y power mosfet ic Power Mosfet Transistor Silicon NPN Triple Diffused Type (PCT Process)2SC2229-Y power mosfet ic Power Mosfet Transistor Silicon NPN Triple Diffused Type (PCT Process)2SC2229-Y power mosfet ic Power Mosfet Transistor Silicon NPN Triple Diffused Type (PCT Process)
