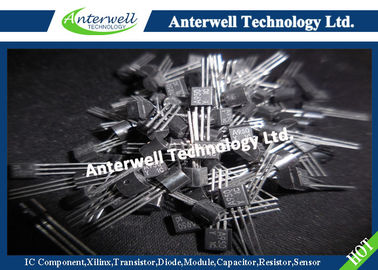

2SA950-Y audio power mosfet Power Mosfet Transistor PNP Plastic Encapsulated Transistor

: Large Image : 2SA950-Y audio power mosfet Power Mosfet Transistor PNP Plastic Encapsulated Transistor

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SA950-Y

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9500pcs

Contact Now

Detailed Product Description

Collector To Base Voltage:	-35 V	Collector To Emitter Voltage:	-30 V
Emitter To Base Voltage:	-5 V	Collector Current - Continuous:	-0.8 A
Collector Power Dissipation:	600 MW	Junction, Storage Temperature:	150, -55~150 °C
High Light:	power mosfet ic , silicon power transistors

2SA950

-0.8A , -35V

PNP Plastic Encapsulated Transistor

FEATURES

* 1W output applications

* Complementary to 2SC2120

CLASSIFICATION OF h_{FE (1)}

Product-Rank	2SA950-O	2SA950-Y
Range	100-200	160-320

ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)

Parameter	Symbol	Rating	Unit
Collector to Base Voltage	V_CBO	-35	V
Collector to Emitter Voltage	V_CEO	-30	V
Emitter to Base Voltage	V_EBO	-5	V
Collector Current - Continuous	I_C	-0.8	A
Collector Power Dissipation	P_C	600	mW
Junction, Storage Temperature	T_J, T_STG	150, -55~150	°C

TO-92

2SA950-Y audio power mosfet Power Mosfet Transistor PNP Plastic Encapsulated Transistor

CHARACTERISTIC CURVE

2SA950-Y audio power mosfet Power Mosfet Transistor PNP Plastic Encapsulated Transistor
