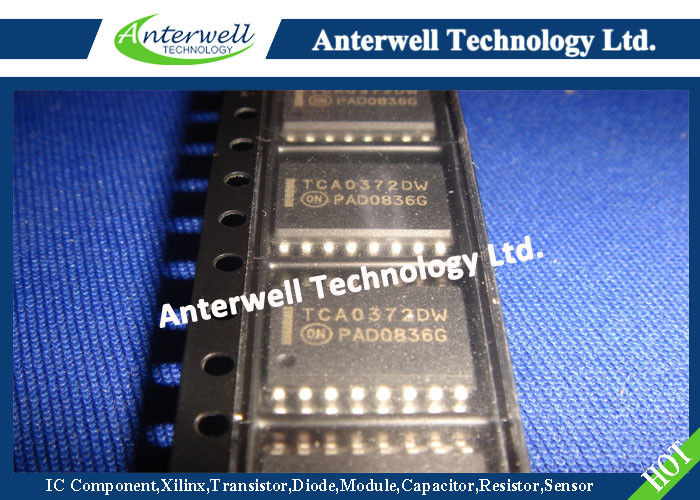

TCA0372DW Integrated Circuit Chip , Dual Power Operational Amplifier IC Chip
TCA0372
Dual Power Operational Amplifier
The TCA0372 is a monolithic circuit intended for use as a power operational amplifier in a wide range of applications, including servo amplifiers and power supplies. No deadband crossover distortion provides better performance for driving coils.
• Output Current to 1.0 A
• Slew Rate of 1.3 V/µs
• Wide Bandwidth of 1.1 MHz
• Internal Thermal Shutdown
• Single or Split Supply Operation
• Excellent Gain and Phase Margins
• Common Mode Input Includes Ground
• Zero Deadband Crossover Distortion
ORDERING INFORMATION
| Device | Operating Temperature Range | Package |
| TCA0372DW | TJ=-40 to +150°C | SOP (12+2+2) L |
| TCA0372DP1 | Plastic DIP | |
| TCA0372DP2 | Plastic DIP |
MAXIMUM RATINGS
| Rating | Symbol | Value | Unit |
| Supply Voltage (from VCC to VEE) | VS | 40 | V |
| Input Differential Voltage Range | VIDR | (Note 1) | V |
| Input Voltage Range | VIR | (Note 1) | V |
| Junction Temperature (Note 2) | TJ | +150 | °C |
| Storage Temperature Range | Tstg | –55 to +150 | °C |
| DC Output Current | IO | 1.0 | A |
| Peak Output Current (Nonrepetitive) | I(max) | 1.5 | A |
NOTES:
1. Either or both input voltages should not exceed the magnitude of VCC or VEE.
2. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not exceeded.
Representative Block Diagram
OUTLINE DIMENSIONS
