BQ24610RGET Stand Alone Synchronous Switch Mode Li - Ion or Li - Polymer Battery Charger

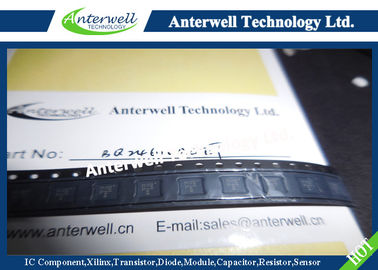

: Large Image : BQ24610RGET Stand Alone Synchronous Switch Mode Li - Ion or Li - Polymer Battery Charger

Product Details:

Place of Origin:	Original
Brand Name:	TI
Certification:	Original Factory Pack
Model Number:	BQ24610RGET

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

VCC, ACP, ACN, SRP, SRN, BATDRV, ACDRV, CE, STAT1, STAT2, PG:	–0.3 To 33 V	PH:	–2 To 36 V
VFB:	–0.3 To 16 V	REGN, LODRV, ACSET, TS, TTC:	–0.3 To 7 V
BTST, HIDRV With Respect To GND:	–0.3 To 39 V
Highlight:	circuit board ic , electronic components ic

BQ24610RGET Stand Alone Synchronous Switch Mode Li - Ion or Li - Polymer Battery Charger

Stand-Alone Synchronous Switch-Mode Li-Ion or Li-Polymer Battery Charger with System Power Selector and Low Iq

FEATURES

• 600 kHz NMOS-NMOS Synchronous Buck

• Energy Star Low Quiescent Current Iq Converter

– < 15 µA Off-State Battery Discharge current

• Stand-alone Charger Support for Li-Ion or

– < 1.5 mA Off-State Input Quiescent Current Li-Polymer

• 5V–28V VCC Input Operating Range and APPLICATIONS

Support 1-6 Battery Cells (bq24610)

• Netbook, Mobile Internet Device and

• 5V–24V VCC Input Operating Range and Ultra-Mobile

PC Support 1-5 Battery Cells (bq24617)

• Personal Digital Assistants

• Up to 10A Charge Current and Adapter Current

• Handheld Terminals • Industrial and Medical Equipment

• High-Accuracy Voltage and Current Regulation

• Portable Equipment

– ±0.5% Charge Voltage Accuracy

– ±3% Charge Current Accuracy DESCRIPTION

– ±3% Adapter Current Accuracy

DESCRIPTION

The bq24610/7 is highly integrated Li-ion or Li-polymer switch-mode battery charge controller. It offers a constant-frequency synchronous switching PWM controller with high accuracy charge currentand voltage regulation, charge preconditioning, termination, adapter current regulation and charge status monitoring.

The bq24610/7 charges the battery in three phases:preconditioning, constant currentand constantvoltage. Charge is terminated when the current preconditioning, constant current, and constant

voltage. Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The bq24610/7 automatically restarts the charge cycle if the battery voltage falls below an nternal threshold, and enters a low-quiescent current sleep mode when the input voltage falls below the battery voltage.

TYPICAL APPLICATION
