Product Details:
Payment & Shipping Terms:
|
| Reverse Voltage: | 600 V | Operating Junction Temperature: | 175°C |
|---|---|---|---|
| Storage Temperature: | -65 To +175 °C | Lead Temperature For Soldering Purposes: | 260°C Max. For 10 Seconds |
| Weight: | 1.1 Gram | Package: | Pb−Free |
| High Light: | bridge rectifier circuit,signal schottky diode |
||

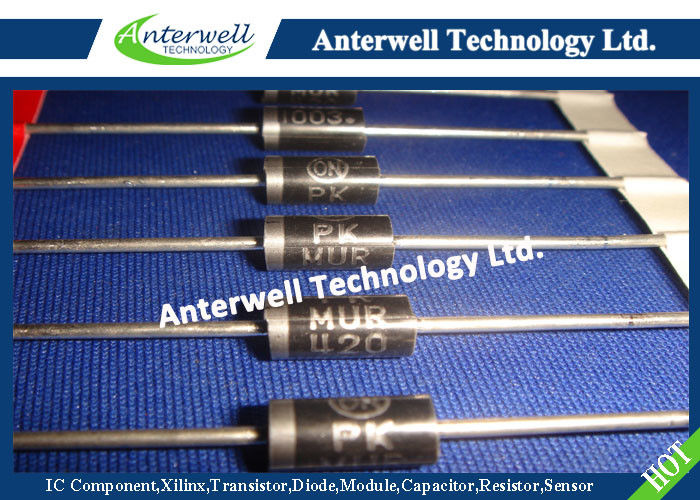

MUR420RLG High Speed Switching Diode Switchmode Tm Power Rectifiers
ULTRAFAST RECTIFIERS
4.0 AMPERES, 50−600 VOLTS
These state−of−the−art devices are a series designed for use in switching power supplies, inverters and as free wheeling diodes.
Features
• Ultrafast 25 ns, 50 ns and 75 ns Recovery Times
• 175°C Operating Junction Temperature
• Low Forward Voltage
• Low Leakage Current
• High Temperature Glass Passivated Junction
• Reverse Voltage to 600 V
• Shipped in Plastic Bags, 500 per Bag
• Available in Tape and Reel, 1500 per Reel, by Adding a “RL’’ Suffix to the Part Number
• Pb−Free Packages are Available*
Mechanical Characteristics:
• Case: Epoxy, Molded
• Weight: 1.1 Gram (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
• Polarity: Cathode indicated by Polarity Band
MAXIMUM RATINGS
| Rating | Symbol | MUR | Unit | |||||
| 405 | 410 | 415 | 420 | 440 | 460 | |||
|
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
50 | 100 | 150 | 200 | 400 | 600 | V |
|
Average Rectified Forward Current (Square Wave) (Mounting Method #3 Per Note 2) |
IF(AV) | 4.0 @ TA = 80°C |
4.0 @ TA = 40°C |
A | ||||
|
Nonrepetitive Peak Surge Current (Surge applied at rated load conditions, half wave, single phase, 60 Hz) |
IFSM | 125 | 110 | A | ||||
| Operating Junction Temperature & Storage Temperature | TJ, Tstg | -65 to +175 | °C | |||||
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
MARKING DIAGRAM
PACKAGE DIMENSIONS
AXIAL LEAD
CASE 267−05
(DO−201AD)
ISSUE G
