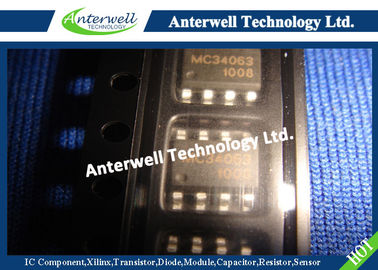

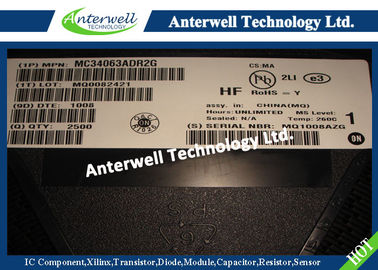

MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators

China MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators supplier
MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators supplier MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators supplier

Large Image :  MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: MC34063ADR2G

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8500pcs
Contact Now
Detailed Product Description
Power Supply Voltage: 40 Vdc Comparator Input Voltage Range: −0.3 To +40 Vdc
Switch Collector Voltage: 40 Vdc Switch Current: 1.5 A
Operating Junction Temperature: +150 °C Storage Temperature Range: −65 To +150 °C
High Light:

electronics ic chip

,

integrated circuit ic



MC34063A, MC33063A, NCV33063A

1.5 A, Step−Up/Down/ Inverting Switching Regulators



The MC34063A Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step−Down and Step−Up and Voltage−Inverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information.



Features

• Operation from 3.0 V to 40 V Input

• Low Standby Current

• Current Limiting

• Output Switch Current to 1.5 A

• Output Voltage Adjustable

• Frequency Operation to 100 kHz

• Precision 2% Reference

• Pb−Free Packages are Available



MAXIMUM RATINGS

Rating

Symbol

Value

Unit

Power Supply Voltage

VCC

40

Vdc

Comparator Input Voltage Range

VIR

−0.3 to +40

Vdc

Switch Collector Voltage

VC(switch)

40

Vdc

Switch Emitter Voltage (VPin 1 = 40 V)

VE(switch)

40

Vdc

Switch Collector to Emitter Voltage

VCE(switch)

40

Vdc

Driver Collector Voltage

VC(driver)

40

Vdc

Driver Collector Current (Note 1)

IC(driver)

100

mA

Switch Current

ISW

1.5

A

Power Dissipation and Thermal Characteristics







  Plastic Package, P, P1 Suffix







    TA = 25°C

PD

1.25

W

    Thermal Resistance

RθJA

100

°C/W

  SOIC Package, D Suffix







    TA = 25°C

PD

625

mW

    Thermal Resistance

RθJA

160

°C/W

Operating Junction Temperature

TJ

+150

°C

Operating Ambient Temperature Range

TA



°C

  MC34063A



0 to +70



  MC33063AV, NCV33063A



−40 to +125



  MC33063A



−40 to +85



Storage Temperature Range

Tstg

−65 to +150

°C

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. Maximum package power dissipation limits must be observed.

2. This device series contains ESD protection and exceeds the following tests: Human Body Model 4000 V per MIL−STD−883, Method 3015. Machine Model Method 400 V.

3. NCV prefix is for automotive and other applications requiring site and change control.



Representative Schematic Diagram

MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators



MARKING DIAGRAMS                                                                         PIN CONNECTIONS

MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching RegulatorsMC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators



PACKAGE DIMENSIONS

SOIC−8 NB

D SUFFIX

CASE 751−07

ISSUE AG

MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators



PDIP−8

P, P1 SUFFIX

CASE 626−05

ISSUE L

MC34063ADR2G electronics ic chips Integrated Circuit Chip 1.5 A, Step−Up/Down/ Inverting Switching Regulators
