LNBTVS3-220 diode rectifier circuit ic electronic components Lightning protection for LNB

China LNBTVS3-220 diode rectifier circuit ic electronic components Lightning protection for LNB supplier

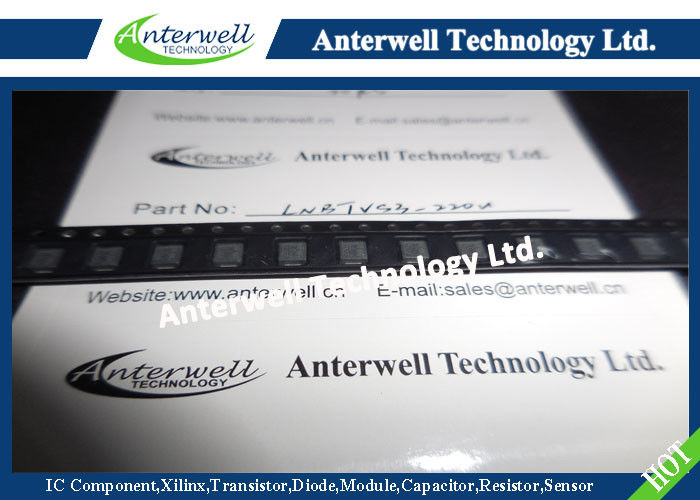

Large Image :  LNBTVS3-220 diode rectifier circuit ic electronic components Lightning protection for LNB

Product Details:

Place of Origin: CN
Brand Name: ST
Certification: Original Factory Pack
Model Number: LNBTVS3-220

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Reel
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 20000PCS
Contact Now
Detailed Product Description
Temperature Range: -65°C To +175°C Payment Term: T/T, Paypal, Western Union
Voltage: 5W Current: 200A
Package: SMA Factory Package: REEL
High Light:

diode rectifier circuit

,

signal schottky diode



LNBTVS3-220 diode rectifier circuit ic electronic components Lightning protection for LNB



LNBTVS3-220



Lightning protection for LNB power supply



Features

■ 3 kV, 4 kV and 6 kV protection (8/20 µs)

■ Axial & SMD package

■ Unidirectional and low VF (VF = 1.2 V at IF = 3 A)

■ Low clamping factor

■ Fast response time



Description

The LNBTVSx-22xx is a dedicated lightning and electrical overstress surge protection for LNB voltage regulators in satellite set top box applications. This device provides the lightning protection required to pass the IEC and FCC regulations. Available in axial, SMB and SMC packages, this device is compatible with industry standard mounting processes.



Table 1. Absolute maximum ratings (Tamb = 25° C)

PPP Peak pulse power dissipation (1) Tj initial = Tamb up to 3 kW

W P Peak dissipation on infinite heatsink Tamb = 75° C

5 W IFSM Non repetitive surge peak forward current for unidirectional types Tp = 10 ms

Tj initial = Tamb 200 A

Tstg Tj Storage temperature range

Maximum junction temperature -65 to + 175 150 ° C ° C TL

Maximum lead temperature for soldering during 10 s at 5 mm from case 230 ° C
