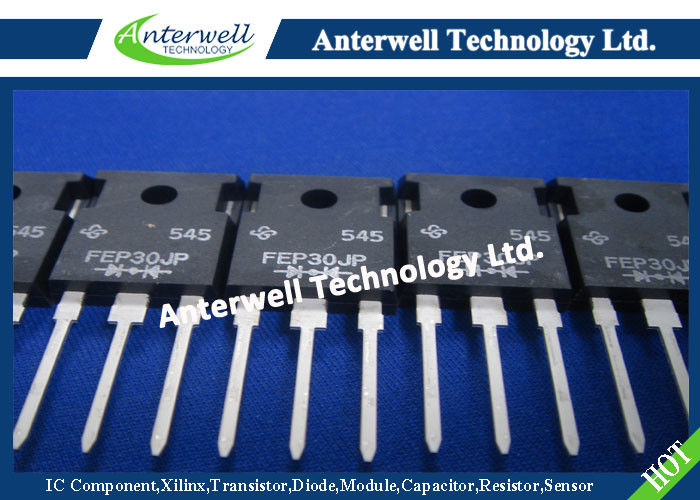

FEP30JP fast recovery rectifier diodes Rectifier Diode Dual Common Cathode Ultrafast Rectifier

: Large Image : FEP30JP fast recovery rectifier diodes Rectifier Diode Dual Common Cathode Ultrafast Rectifier

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	FEP30JP

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8500pcs

Contact Now

Detailed Product Description

Maximum Repetitive Peak Reverse Voltage:	50 V To 600 V	Maximum RMS Voltage:	35 To 420 V
Maximum DC Blocking Voltage:	50 V To 600 V	Maximum Average Forward Rectified Current At TC = 100 °C:	30 A
Peak Forward Surge Current 8.3 Ms Single Half Sine-wave Superimposed On Rated Load Per Diode:	300 A	Operating Storage And Temperature Range:	- 55 To + 150 °C
High Light:	diode rectifier circuit , bridge rectifier circuit

FEP30AP thru FEP30JP
Dual Common Cathode Ultrafast Rectifier

FEATURES
• Glass passivated chip junction
• Ultrafast recovery time
• Low switching losses, high efficiency
• Low thermal resistance
• High forward surge capability
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode power supplies, inverters, freewheeling diodes, dc-to-dc converters, and other power switching application.

MECHANICAL DATA
Case: TO-247AD (TO-3P)
Epoxy meets UL 94 V-0 flammability rating
Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102
E3 suffix for consumer grade, meets JESD 201 class 1A whisker test
Polarity: As marked
Mounting Torque: 10 in-lbs maximum

FEP30JP fast recovery rectifier diodes Rectifier Diode Dual Common Cathode Ultrafast Rectifier PRIMARY CHARACTERISTICS

I_F(AV)	30 A
V_RRM	50 V to 600 V
I_FSM	300 A
t_rr	35 ns, 50 ns
V_F	0.95 V, 1.3 V, 1.5 V
T_{J max.}	150 °C

MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)

PARAMETER	SYMBOL	FEP 30AP	FEP 30BP	FEP 30CP	FEP 30DP	FEP 30FP	FEP 30GP	FEP 30HP	FEP 30JP	UNIT
Maximum repetitive peak reverse voltage	V_RRM	50	100	150	200	300	400	500	600	V
Maximum RMS voltage	V_RMS	35	70	105	140	210	280	350	420	V
Maximum DC blocking voltage	V_DC	50	100	150	200	300	400	500	600	V
Maximum average forward rectified current at T_C = 100 °C	I_F(AV)	30								A
Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load per diode	I_FSM	300								A
Operating storage and temperature range	T_J, T_STG	- 55 to + 150								°C

RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)
FEP30JP fast recovery rectifier diodes Rectifier Diode Dual Common Cathode Ultrafast Rectifier

PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
TO-247AD (TO-3P)
