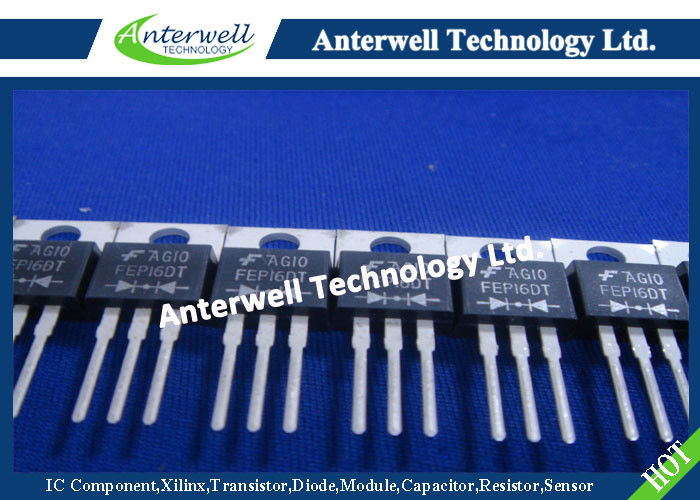

FEP16AT THRU FEP16JT
FAST EFFICIENT PLASTIC RECTIFIER
Reverse Voltage - 50 to 600 Volts Forward Current - 16.0 Amperes
FEATURES
♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0
♦ Dual rectifier construction, positive centertap
♦ Glass passivated chip junctions
♦ Low power loss
♦ Low forward voltage, high current capability
♦ High surge current capability
♦ Superfast recovery times for high efficiency
♦ High temperature soldering guaranteed: 250°C, 0.16" (4.06mm) from case for 10 seconds
MECHANICAL DATA
Case: JEDEC TO-220AB molded plastic body over passivated chips
Terminals: Plated leads solderable per MIL-STD-750, Method 2026
Polarity: As marked
Mounting Position: Any
Mounting Torque: 5 in. - lbs. max.
Weight: 0.08 ounce, 2.24 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOL | FEP | FEP | FEP | FEP | FEP | FEP | FEP | FEP | UNIT | |
Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | Volts |
Maximum RMS voltage | VRMS | 35 | 70 | 105 | 140 | 210 | 280 | 350 | 420 | Volts |
Maximum DC blocking voltage | VDC | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | Volts |
Maximum average forward rectified current at TC=100°C | I(AV) | 16.0 | Amps | |||||||
Peak forward surge current | IFSM | 200.0 | Amps | |||||||
Maximum instantaneous forward voltage per leg at 8.0A | VF | 0.95 | 1.3 | 1.5 | Volts | |||||
Maximum DC reverse current TC=25°C | IR | 10.0 | µA | |||||||
Maximum reverse recovery time (NOTE 1) per leg | trr | 35.0 | 50.0 | ns | ||||||
Typical Junction Capacitance per leg (NOTE 2) | CJ | 85.0 | 60.0 | pF | ||||||
Typical thermal resistance (NOTE 3) | RΘJA | 15.0 | °C/W | |||||||
Operating junction and storage temperature range | TJ, TSTG | -55 to +150 | °C |
NOTES:
(1) Reverse recovery test conditions: IF=0.5A, IR=1.0A, Irr=0.25A
(2) Measured at 1.0 MHZ and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient and from junction to case per leg mounted on heatsink
TO-220AB
RATINGS AND CHARACTERISTICS CURVES FEP16AT THRU FEP16JT
