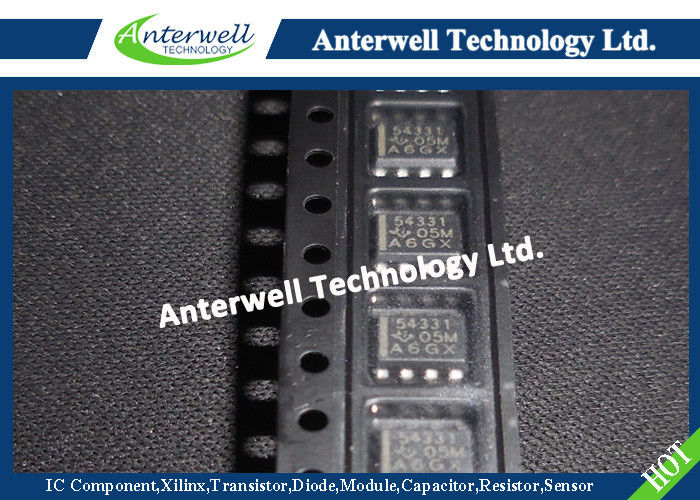

TPS54331DR 3A, 28V INPUT, STEP DOWN SWIFTM DC/DC CONVERTER circuit board ic

: Large Image : TPS54331DR 3A, 28V INPUT, STEP DOWN SWIFTM DC/DC CONVERTER circuit board ic

Product Details:

Place of Origin:	Original
Brand Name:	TI
Certification:	Original Factory Pack
Model Number:	TPS54331DR

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

VIN:	–0.3 To 30 V	EN:	–0.3 To 5 V
BOOT:	38 V	VSENSE:	–0.3 To 3 V
COMP:	–0.3 To 3 V
High Light:	circuit board ic , electronic components ic

3A, 28V INPUT, STEP DOWN SWIFT™ DC/DC CONVERTER WITH ECO-MODE™

FEATURES

• 3.5V to 28V Input Voltage Range

• Adjustable Output Voltage Down to 0.8V

• Integrated 80 mΩ High Side MOSFET Supports

up to 3A Continuous Output Current

• High Efficiency at Light Loads with a Pulse

Skipping Eco-mode™

• Fixed 570kHz Switching Frequency

• Typical 1µA Shutdown Quiescent Current

• Adjustable Slow Start Limits Inrush Currents

• Programmable UVLO Threshold

• Overvoltage Transient Protection

TPS54331DR 3A, 28V INPUT, STEP DOWN SWIFTM DC/DC CONVERTER circuit board ic

NAME	NO.	DESCRIPTION
BOOT	1	A 0.1 µF bootstrap capacitor is required between BOOT and PH. If the voltage on this capacitor falls below the minimum requirement, the high-side MOSFET is forced to switch off until the capacitor is refreshed.
VIN	2	Input supply voltage, 3.5 V to 28 V.
EN	3	Enable pin. Pull below 1.25V to disable. Float to enable. Programming the input undervoltage lockout with two resistors is recommended.
SS	4	Slow start pin. An external capacitor connected to this pin sets the output rise time
VSENSE	5	Inverting node of the gm error amplifier
COMP	6	Error amplifier output, and input to the PWM comparator. Connect frequency compensation components to this pin
GND	7	Ground.
PH	8	The source of the internal high-side power MOSFET.
