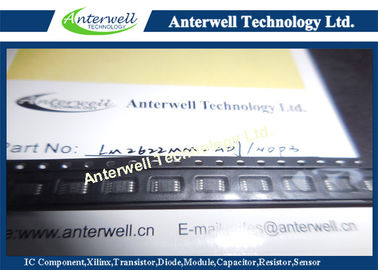

LM2622MM-ADJ
600kHz/1.3MHz Step-up PWM DC/DC Converter
General Description
The LM2622 is a step-up DC/DC converter with a 1.6A, 0.2Ω internal switch and pin selectable operating frequency. With the ability to convert 3.3V to multiple outputs of 8V, -8V, and 23V, the LM2622 is an ideal part for biasing TFT displays. The LM2622 can be operated at switching frequencies of 600kHz and 1.3MHz allowing for easy filtering and low noise. An external compensation pin gives the user flexibility in setting frequency compensation, which makes possible the use of small, low ESR ceramic capacitors at the output. The LM2622 is available in a low profile 8-lead MSOP package.
Features
1.6A, 0.2Ω, internal switch
Operating voltage as low as 2.0V
600kHz/1.3MHz pin selectable frequency operation
Over temperature protection
8-Lead MSOP package Applications
TFT Bias Supplies
Handheld Devices
Portable Applications
GSM/CDMA Phones n Digital Cameras
Absolute Maximum Ratings
VIN 12V SW Voltage 18V
FB Voltage 7V VC Voltage 7V
SHDN Voltage 7V FSLCT 12V
Maximum Junction Temperature 150˚C
Power Dissipation(Note 2) Internally Limited Lead Temperature 300˚C
Vapor Phase (60 sec.) 215˚C
Infrared (15 sec.) 220˚C
ESD Susceptibility (Note 3) Human Body Model 2kV
Machine Model 200V
Operating Conditions Operating Junction
Temperature Range (Note 4) −40˚C to +125˚C
Storage Temperature −65˚C to +150˚C
Supply Voltage 2V to 12V
