STD60NF55LT4 N-channel 55V - 0.012ヘ - 60A - DPAK/IPAK Power MOSFET

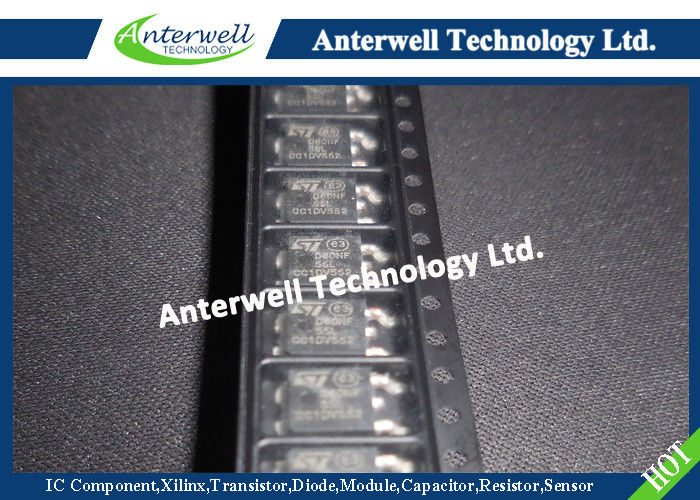

: Large Image : STD60NF55LT4 N-channel 55V - 0.012ヘ - 60A - DPAK/IPAK Power MOSFET

Product Details:

Place of Origin:	brand new
Brand Name:	STMICROELECTRONICS
Certification:	Original Factory Pack
Model Number:	STD60NF55LT4

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Drain-source Voltage (VGS = 0):	55 V	Gate- Source Voltage:	± 15 V
Drain Current (continuous) At TC = 25°C:	60 A	Drain Current (continuous) At TC = 100°C:	42 A
Drain Current (pulsed):	240 A
High Light:	power mosfet ic , multi emitter transistor

N-channel 55V - 0.012Ω - 60A - DPAK/IPAK STripFET™ II Power MOSFET

STD60NF55LT4 N-channel 55V - 0.012ヘ - 60A - DPAK/IPAK Power MOSFET General features

Type	V_DSS	R_DS(on)	I_D
STD60NF55L-1	55V	<0.015Ω	60A
STD60NF55L	55V	<0.015Ω	60A

■ Low threshold drive

Description

This MOSFET is the latest development of STMicroelectronics unique “Single Feature Size™” strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalance characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.

Applications

■ Switching application

Order codes

Part number	Marking	Package	Packaging
STD60NF55LT4	D60NF55L	DPAK	Tape & reel
STD60NF55L-1	D60NF55L	IPAK	Tube
