TL082CPWR amplifier ic chip Integrated Circuit Chip JEET-INPUT OPERTIONAL AMPLIFERS

China TL082CPWR amplifier ic chip Integrated Circuit Chip JEET-INPUT OPERTIONAL AMPLIFERS supplier

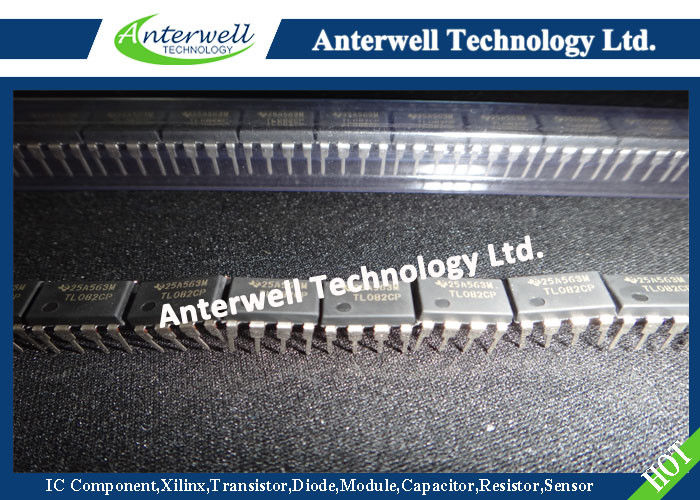

Large Image :  TL082CPWR amplifier ic chip Integrated Circuit Chip JEET-INPUT OPERTIONAL AMPLIFERS

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: TL082CPWR

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8600pcs
Contact Now
Detailed Product Description
Supply Voltage VCC+: 18 V Supply Voltage VCC−: -18 V
Differential Input Voltage: ± 30 V Input Voltage: ±15 V
Operating Virtual Junction Temperature: 150 °C Storage Temperature Range: − 65 To 150 °C
High Light:

electronics ic chip

,

integrated circuit components



TL081, TL081A, TL081B, TL082, TL082A, TL082B,

TL084, TL084A, TL084B

JEET-INPUT OPERTIONAL AMPLIFERS



  • Low Power Consumption
  • Wide Common-Mode and Differential Voltage Ranges
  • Low Input Bias and Offset Currents
  • Output Short-Circuit Protection
  • Low Total Harmonic
  • Distortion . . . 0.003% Typ
  • High Input Impedance . . . JFET-Input Stage
  • Latch-Up-Free Operation
  • High Slew Rate . . . 13 V/µs Typ
  • Common-Mode Input Voltage Range Includes VCC+

description/ordering information

The TL08x JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient. Offset adjustment and external compensation options are available within the TL08x family.

The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from −40°C to 85°C. The Q-suffix devices are characterized for operation from −40°C to 125°C. The M-suffix devices are characterized for operation over the full military temperature range of −55°C to 125°C.



absolute maximum ratings over operating free-air temperature range

(unless otherwise noted)†



TL08_C

TL08_AC

TL08_BC

TL08_I TL084Q TL08_M UNIT
Supply voltage, VCC+ (see Note 1) 18 V
Supply voltage VCC− (see Note 1) -18 V
Differential input voltage, VID (see Note 2) ± 30 V
Input voltage, VI (see Notes 1 and 3) ± 15 V
Duration of output short circuit (see Note 4) Unlimited
Continuous total power dissipation See Dissipation Rating Table
Operating free-air temperature range, TA 0 to 70 − 40 to 85 − 40 to 125 − 55 to 125 °C
Package thermal impedance, θJA (see Notes 5 and 6) D package (8-pin) 97 97     °C/W

D package (14-pin) 86 86
N package (14-pin) 76 76
NS package (14-pin) 80
P package (8-pin) 85 85
PS package (8-pin) 95 95
PW package (8-pin) 149
PW package (14-pin) 113 113
Operating virtual junction temperature 150 °C
Case temperature for 60 seconds, TC FK package       260 °C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or JG package       300 °C
Storage temperature range, Tstg − 65 to 150 °C

† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES:

1. All voltage values, except differential voltages, are with respect to the midpoint between VCC+ and VCC−.

2. Differential voltages are at IN+ with respect to IN−.

3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.

4. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded.

5. Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient temperature is PD = (TJ(max) − TA)/θJA. Operating at the absolute maximum TJ of 150°C can affect reliability.

6. The package thermal impedance is calculated in accordance with JESD 51-7.



TL082CPWR amplifier ic chip Integrated Circuit Chip JEET-INPUT OPERTIONAL AMPLIFERS



schematic (each amplifier)

TL082CPWR amplifier ic chip Integrated Circuit Chip JEET-INPUT OPERTIONAL AMPLIFERS
