TDA4865AJ Integrated Circuit Chip eflection boosters for use in vertical deflection systems for frame

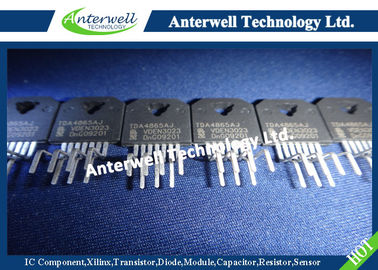

: Large Image : TDA4865AJ Integrated Circuit Chip eflection boosters for use in vertical deflection systems for frame

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TDA4865AJ

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8600pcs

Contact Now

Detailed Product Description

Supply Voltage 1:	40 V	Supply Voltage 2:	70 V
Flyback Supply Voltage Of TDA4865J:	70 V	Storage Temperature:	−25 To +150 °C
Ambient Temperature:	−20 To +75 °C	Junction Temperature:	150 °C
High Light:	multi emitter transistor , silicon power transistors

TDA4865J; TDA4865AJ

Vertical deflection booster

General description

The TDA4865J and TDA4865AJ are deflection boosters for use in vertical deflection systems for frame frequencies up to 200 Hz.

The TDA4865J needs a separate flyback supply voltage, so the supply voltages are independently adjustable to optimize power consumption and flyback time.

For the TDA4865AJ the flyback supply voltage will be generated internally by doubling the supply voltage and therefore a separate flyback supply voltage is not needed.

Both circuits provide differential input stages.

Features

■ Power amplifier with differential inputs

■ Output current up to 3.8 A (p-p)

■ High vertical deflection frequency up to 200 Hz

■ High linear sawtooth signal amplification

■ Flyback generator:

◆ TDA4865J: separate adjustable flyback supply voltage up to 70 V

◆ TDA4865AJ: internally doubled supply voltage (two supply voltages only for DC-coupled outputs)

Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages referenced to pin GND; unless otherwise specified.

Symbol	Parameter	Conditions	Min	Max	Unit
V_P1	supply voltage 1		-	40	V
V_P2	supply voltage 2		-	70	V
V_FB	flyback supply voltage of TDA4865J		-	70	V
V_P3	flyback generator output voltage of TDA4865AJ		0	V_P1 +3	V
V_i(INN)	input voltage on pin INN		-	V_P1	V
V_i(INP)	input voltage on pin INP		-	V_P1	V
V_o(VOUT)	output voltage on pin VOUT		-	72	V
I_P2	supply current 2		-	±2.0	A
I_o(VOUT)	output current on pin VOUT		[1] -	±2.0	A
I_VFB	current during flyback of TDA4865J		-	±2.0	A
I_VP3	current during flyback of TDA4865AJ		-	±2.0	A
T_stg	storage temperature		-25	+150	°C
T_amb	ambient temperature		-20	+75	°C
Tj	junction temperature		[1] -	150	°C
V_esd	electrostatic discharge voltage	machine model human body model	[2] −400 [3] −4000	+400 +4000	V V

[1] Internally limited by thermal protection; will be activated for Tj ≥ 150 °C.

[2] Class C according to EIA/JESD22-A115-A.

[3] Class 3A according to JESD22-A114C.01.

Block diagram

TDA4865AJ Integrated Circuit Chip eflection boosters for use in vertical deflection systems for frame
