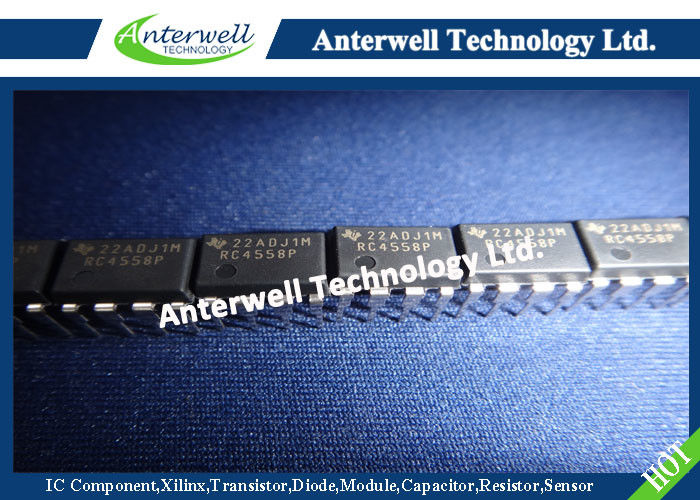

RC4558P 8 pin ic chip Integrated Circuit Chip DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIER


RC4558
DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIER

FEATURES
• Continuous Short-Circuit Protection
• Wide Common-Mode and Differential Voltage Ranges
• No Frequency Compensation Required
• Low Power Consumption
• No Latch-Up
• Unity-Gain Bandwidth . . . 3 MHz Typ
• Gain and Phase Match Between Amplifiers
• Low Noise . . . 8 nV/√Hz Typ at 1 kHz

DESCRIPTION/ORDERING INFORMATION
The RC4558 device is a dual general-purpose operational amplifier, with each half electrically similar to the µA741, except that offset null capability is not provided.
The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is short-circuit protected, and the internal frequency compensation ensures stability without external components.

Absolute Maximum Ratings (1)
over operating free-air temperature range (unless otherwise noted)

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values, unless otherwise noted, are with respect to the midpoint between VCC+ and VCC–.
(3) Differential voltages are at IN+ with respect to IN–.
(4) The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
(5) Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded.
(6) Maximum power dissipation is a function of TJ (max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient temperature is PD = (TJ (max) – TA)/θJA. Operating at the absolute maximum TJ of 150°C can affect reliability.
(7) The package thermal impedance is calculated in accordance with JESD 51-7.

SCHEMATIC (EACH AMPLIFIER)
