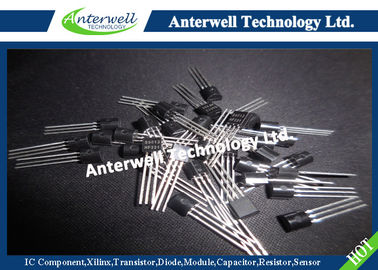

S9013 TO-92 Plastic-Encapsulate Transistors (HAROM ELECTRONIC) low power mosfet high voltage power mosfet

: Large Image : S9013 TO-92 Plastic-Encapsulate Transistors (HAROM ELECTRONIC) low power mosfet high voltage power mosfet

Product Details:

Place of Origin:	Original
Brand Name:	FAIRCHILD
Certification:	Original Factory Pack
Model Number:	S9013

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Collector-Base Voltage:	40 V	Collector-Emitter Voltage:	20 V
Emitter-Base Voltage:	5 V	Collector Current:	500 MA
Collector Power Dissipation:	625 MW
Highlight:	power mosfet ic , multi emitter transistor

1W Output Amplifier of Potable Radios in Class B Push-pull Operation.

• High total power dissipation. (PT=625mW) S9013 TO-92 Plastic-Encapsulate Transistors (HAROM ELECTRONIC) low power mosfet high voltage power mosfet

• High Collector Current. (IC=500mA)

• Complementary to SS9012

• Excellent hFE linearity.

Absolute Maximum Ratings

Symbol	Parameter	Ratings	Units
VCBO	Collector-Base Voltage	40	V
VCEO	Collector-Emitter Voltage	20	V
VEBO	Emitter-Base Voltage	5	V
IC	Collector Current	500	mA
PC	Collector Power Dissipation	625	mW
TJ	Junction Temperature	150	°C

S9013 TO-92 Plastic-Encapsulate Transistors (HAROM ELECTRONIC) low power mosfet high voltage power mosfet
