SB5H1100 High Voltage Schottky Rectifier power rectifier diode schottky rectifier diode high voltage rectifier diode

China SB5H1100 High Voltage Schottky Rectifier power rectifier diode schottky rectifier diode high voltage rectifier diode supplier

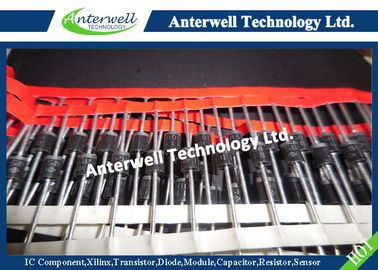

Large Image :  SB5H1100 High Voltage Schottky Rectifier power rectifier diode schottky rectifier diode high voltage rectifier diode

Product Details:

Place of Origin: Original
Brand Name: VISHAY
Certification: Original Factory Pack
Model Number: SB5H1100

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiation
Packaging Details: please contact me for details
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 5200PCS
Contact Now
Detailed Product Description
VRRM: 100 V VRWM: 100 V
VDC: 100 V IF(AV): 5 A
IFSM: 200 A
High Light:

diode rectifier circuit

,

bridge rectifier circuit


High Voltage Schottky Rectifier


SB5H1100 High Voltage Schottky Rectifier power rectifier diode schottky rectifier diode high voltage rectifier diodeFeatures

• Plastic package has Underwriters Laboratory Flammability      Classification 94V-0



• Low power loss, high efficiency



• For use in low voltage high frequency inverters, free wheeling, and polarity protection applications



• Guardring for overvoltage protection





Mechanical Data

Case: JEDEC DO-201AD molded plastic body



Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 High temperature soldering guaranteed: 250°C/10 seconds, 0.375” (9.5mm) lead length, 5lbs (2.3kg tension)



Polarity: Color band denotes cathode end



Mounting Position: Any



Weight: 0.04 oz., 1.12 g







Maximum Ratings and Thermal Characteristics

Parameter  Symbol SB5H100 Unit
Maximum repetitive peak reverse voltage  VRRM 100 V
Working peak reverse voltage  VRWM 100 V
Maximum DC blocking voltage  VDC 100 V
Maximum average forward rectified current at TC = 80°C  IF(AV) 5.0 A
Maximum thermal resistance (2) RθJA 25 °C/W
Storage temperature range  TSTG –55 to +175 °C
Maximum operating junction temperature   TJ  175  °C



SB5H1100 High Voltage Schottky Rectifier power rectifier diode schottky rectifier diode high voltage rectifier diode
