TSOP98260 IR Sensor Module for Remote Control Systems low power mosfet high voltage power mosfet

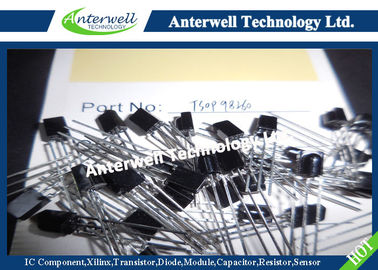

: Large Image : TSOP98260 IR Sensor Module for Remote Control Systems low power mosfet high voltage power mosfet

Product Details:

Place of Origin:	Original
Brand Name:	VISHAY
Certification:	Original Factory Pack
Model Number:	TSOP98260

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

VS:	- 0.3 To + 5.5 V	VO:	- 0.3 To (VS + 0.3) V
IO:	10 MA	Tj:	100 °C
Tstg:	- 25 To + 85 °C
High Light:	multi emitter transistor , silicon power transistors

IR Sensor Module for Remote Control Systems

TSOP98260 IR Sensor Module for Remote Control Systems low power mosfet high voltage power mosfet FEATURES

• Photo detector and preamplifier in one package

• AC coupled response from 20 kHz to 60 kHz, all data formats

• Improved shielding against electrical field disturbance

• TTL and CMOS compatibility

• Output active low

• Supply voltage: 2.7 V to 5.5 V

• Carrier out signal for code learning functions

DESCRIPTION

The TSOP98260 is a miniaturized sensor for receiving the modulated signal of infrared remote control systems. A PIN diode and preamplifier are assembled on a lead frame, the epoxy package is designed as an IR filter. The modulated output signal, carrier out, can be used for code learning applications

This component has not been qualified according to automotive specifications.

PARTS TABLE
CARRIER FREQUENCY	CODE LEARNING APPLICATIONS
20 kHz to 60 kHz	20 kHz to 60 kHz TSOP98260

BLOCK DIAGRAM APPLICATION CIRCUIT
