LM2596T-3.3 switching power mosfet Power Mosfet Transistor SIMPLE SWITCHER Power Converter

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

LM2596T-3.3 switching power mosfet Power Mosfet Transistor SIMPLE SWITCHER Power Converter

China LM2596T-3.3 switching power mosfet Power Mosfet Transistor SIMPLE SWITCHER Power Converter supplier

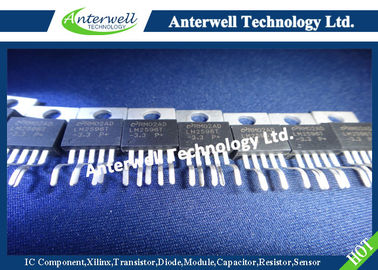

Large Image :  LM2596T-3.3 switching power mosfet Power Mosfet Transistor SIMPLE SWITCHER Power Converter

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: LM2596T-3.3

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please conatct me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8300pcs
Contact Now
Detailed Product Description
Maximum Supply Voltage: 45V ON /OFF Pin Input Voltage: −0.3 ≤ V ≤ +25V
Feedback Pin Voltage: −0.3 ≤ V ≤+25V Output Voltage To Ground (Steady State): −1V
Power Dissipation: Internally Limited Storage Temperature Range: −65˚C To +150˚C
High Light:

power mosfet ic

,

multi emitter transistor


LM2596
SIMPLE SWITCHER® Power Converter 150 kHz 3A Step-Down Voltage Regulator

General Description
The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation†, and a fixed-frequency oscillator.
The LM2596 series operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 5-lead TO-220 package with several different lead bend options, and a 5-lead TO-263 surface mount package.
A standard series of inductors are available from several different manufacturers optimized for use with the LM2596 series. This feature greatly simplifies the design of switch-mode power supplies.
Other features include a guaranteed ±4% tolerance on output voltage under specified input voltage and output load conditions, and ±15% on the oscillator frequency. External shutdown is included, featuring typically 80 µA standby current. Self protection features include a two stage frequency reducing current limit for the output switch and an over temperature shutdown for complete protection under fault conditions.

Features

  • 3.3V, 5V, 12V, and adjustable output versions
  • Adjustable version output voltage range, 1.2V to 37V ±4% max over line and load conditions
  • Available in TO-220 and TO-263 packages
  • Guaranteed 3A output load current
  • Input voltage range up to 40V
  • Requires only 4 external components
  • Excellent line and load regulation specifications
  • 150 kHz fixed frequency internal oscillator
  • TTL shutdown capability
  • Low power standby mode, IQ typically 80 µA
  • High efficiency
  • Uses readily available standard inductors
  • Thermal shutdown and current limit protection


Applications

  • Simple high-efficiency step-down (buck) regulator
  • On-card switching regulators
  • Positive to negative converter

Note: †Patent Number 5,382,918.
