Product Details:
Payment & Shipping Terms:
|
| Supply Voltage: | 30V | High-Voltage Pin: | -0.3V~500V |
|---|---|---|---|
| COMP, RT, CS: | -0.3 ~7V | Junction Temperature: | 150°C |
| Operating Ambient Temperature: | -40°C To 85°C | Storage Temperature Range: | -65°C To 150°C |
| High Light: | electronics ic chip,integrated circuit ic |
||

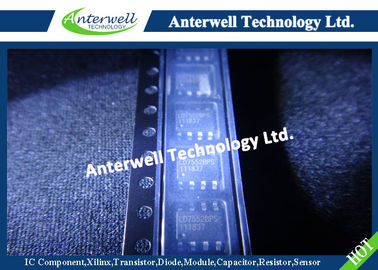

Green-Mode PWM Controller with High-Voltage Start-Up Circuit
General Description
The LD7575 is a current-mode PWM controller with excellent power-saving operation. It features a highvoltage current source to directly supply the startup current from bulk capacitor and further to provide a lossless startup circuit. The integrated functions such as the leading-edge blanking of the current sensing, internal slope compensation, and the small package provide the users a high efficiency, minimum external component counts, and low cost solution for AC/DC power applications.
Furthermore, the embedded over voltage protection, over load protection and the special green-mode control provide the solution for users to design a high performance power circuit easily. The LD7575 is offered in both SOP-8 and DIP-8 package.
Features
Applications
Supply Voltage VCC 30V
High-Voltage Pin, HV -0.3V~500V
COMP, RT, CS -0.3 ~7V
Junction Temperature 150°C
Operating Ambient Temperature -40°C to 85°C
Storage Temperature Range -65°C to 150°C
Package Thermal Resistance (SOP-8) 160°C/W
Package Thermal Resistance (DIP-8) 100°C/W
Power Dissipation (SOP-8, at Ambient Temperature = 85°C) 400mW
Power Dissipation (DIP-8, at Ambient Temperature = 85°C) 650mW
Lead temperature (Soldering, 10sec) 260°C
ESD Voltage Protection, Human Body Model (except HV Pin) 3KV
ESD Voltage Protection, Machine Model 200V
Gate Output Current 500mA
Caution: Stresses beyond the ratings specified in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Typical Application
Block Diagram
