ULN2803AFWG Octal High Voltage,High Current Darlington Transistor Arrays Power Mosfet Transistor

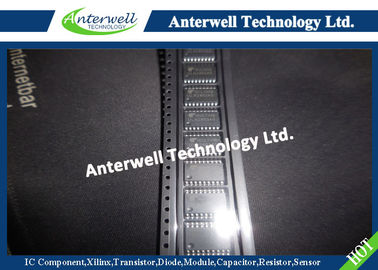

: Large Image : ULN2803AFWG Octal High Voltage,High Current Darlington Transistor Arrays Power Mosfet Transistor

Product Details:

Place of Origin:	Original
Brand Name:	TOSHIBA
Certification:	Original Factory Pack
Model Number:	ULN2803AFWG

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

VCE (SUS):	−0.5~50 V	IOUT:	500 MA / Ch
VIN:	−0.5~30 V	VR:	50 V
IF:	500 MA
High Light:	power mosfet ic , multi emitter transistor

ULN2803APG,ULN2803AFWG,ULN2804APG,ULN2804AFWG (Manufactured by Toshiba Malaysia)

ULN2803AFWG Octal High Voltage,High Current Darlington Transistor Arrays Power Mosfet Transistor The ULN2803APG / AFWG Series are high−voltage, high−current darlington drivers comprised of eight NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.

Features

►Output current (single output) 500 mA (Max.)

► High sustaining voltage output 50 V (Min.)

► Output clamp diodes

► Inputs compatible with various types of logic.

► Package Type−APG : DIP−18pin

► Package Type−AFWG : SOL−18pin

Absolute Maximum Ratings (Ta = 25°C)

Characteristic	Symbol	Rating	Unit
Output sustaining voltage	V_{CE (SUS)}	−0.5~50	V
Output current	IOUT	500	mA / ch
Input voltage	VIN	−0.5~30	V
Clamp diode reverse voltage	VR	50	V
Clamp diode forward current	IF	500	mA
Operating temperature	Topr	−40~85	°C
Storage temperaturE	Tstg	−55~150	°C
