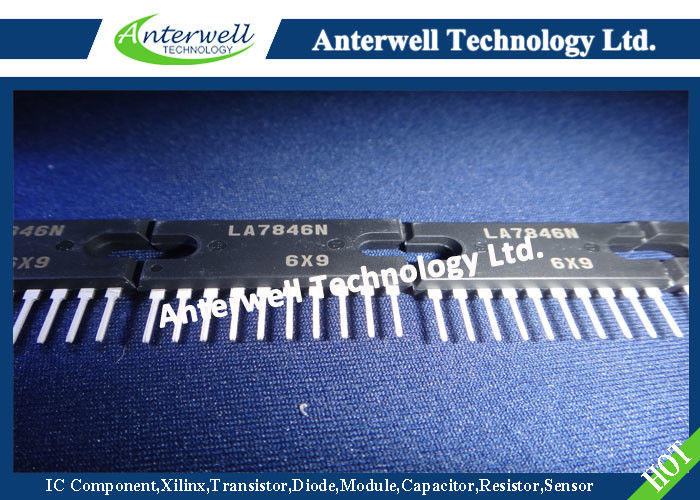

LA7846N linear integrated circuits Integrated Circuit Chip Vertical Deflection Output Circuit

: Large Image : LA7846N linear integrated circuits Integrated Circuit Chip Vertical Deflection Output Circuit

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	LA7846N

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8100pcs

Contact Now

Detailed Product Description

Recommended Supply Voltage:	24 V	Operating Supply Voltage Range:	16 To 38 V
Maximum Supply Voltage:	40 V	Output Block Supply Voltage:	85 V
Thermal Resistance:	3.0 °C/W	Allowable Power Dissipation:	20 W
High Light:	electronics ic chip , integrated circuit ic

LA7846N

Vertical Deflection Output Circuit

Overview

The LA7846N is a vertical deflection output IC for TVs and CRT displays with excellent image quality that use a BUS control system signal processing IC. This IC can drive the direct (even including a DC component) deflection yoke with the sawtooth wave output from the BUS control system signal processing IC. When used in conjunction with Sanyo’s LA7615 series of BUS control system signal processing ICs for TVs, this IC can process all color television signal system functions through the BUS system. Because the maximum deflection current is 3.0 Ap-p, the LA7846N is suited for large screen sets, being capable of driving screens ranging from 33 inches to 37 inches.

Features

. Low power dissipation due to built-in pump-up circuit

. Vertical output circuit

. Thermal protection circuit built in

. Excellent crossover characteristics

. DC coupling possible

Maximum Ratings at Ta = 25 °C

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC7 max		40	V
Output block supply voltage	V_CC4 max		85	V
Deflection output current	I 3 max		–1.9 to +1.9	Ap-o
Thermal resistance	θj-c		3.0	°C/W
Allowable power dissipation	Pd max	With arbitrarily large heat sink fins	20	W
Operating temperature	Topr		–20 to +85	°C
Storage temperature	Tstg		–40 to +150	°C

Block Diagram

LA7846N linear integrated circuits Integrated Circuit Chip Vertical Deflection Output Circuit

Package Dimensions

LA7846N linear integrated circuits Integrated Circuit Chip Vertical Deflection Output Circuit
