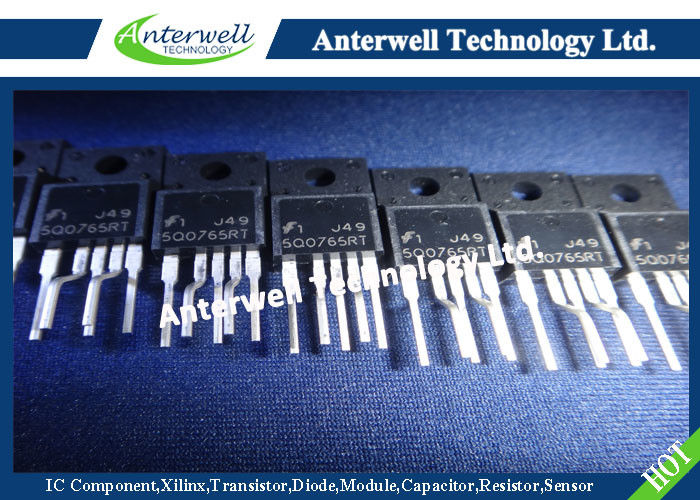

KA5Q0765RTHYDTU Integrated Circuit Chip Quasi Resonant Converter Controller, Internal Burst Mode Controller


KA5Q0765RTH
Fairchild Power Switch(FPS)

Features
• Quasi Resonant Converter Controller
• Internal Burst Mode Controller for Stand-by Mode
• Pulse by Pulse Current Limiting
• Over Current Latch Protection
• Over Voltage Protection (Vsync: Min. 11V)
• Internal Thermal Shutdown Function
• Under Voltage Lockout
• Internal High Voltage Sense FET
• Auto-Restart Mode
• Primary Side Regulation

Description
The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC. The integrated PWM controller includes the fixed oscillator, the under voltage lock out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shut down protection, the over voltage protection, and the temperature compensated precision current sources for loop compensation and fault protection circuitry. Compared to a discrete MOSFET and a controller or a RCC switching converter solutions, a Fairchild Power Switch(FPS) can reduce the total number of components, design size, and weight, so it will improve efficiency, productivity, and system reliability. It has a basic platform well suited for cost-effective design in a quasi-resonant converter as a C-TV power supply.

Absolute Maximum Ratings (Ta=25°C, unless otherwise specified)

Notes:
1. Tj = 25°C to 150°C
2. Repetitive rating: Pulse width limited by maximum junction temperature
3. L = 30mH, VDD = 50V, RG = 25Ω, starting Tj = 25°C
4. L = 13uH, starting Tj = 25°C

Internal Block Diagram
