PIC18F46K22-I/PT 28/40/44-Pin, Low-Power, High-Performance Microcontrollers microchips and integrated circuits linear

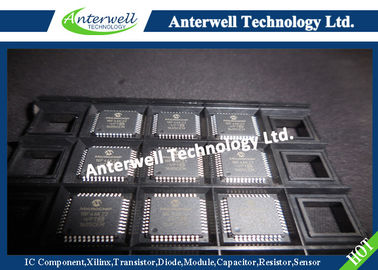

: Large Image : PIC18F46K22-I/PT 28/40/44-Pin, Low-Power, High-Performance Microcontrollers microchips and integrated circuits linear

Product Details:

Place of Origin:	Original
Brand Name:	MICROCHIP
Certification:	Original Factory Pack
Model Number:	PIC18F46K22-I/PT

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Sleep Mode::	20 NA, Typical	Watchdog Timer::	300 NA, Typical
Timer1 Oscillator::	800 NA @ 32 KHz	• Timer1 Oscillator Current::	- 1.2 µA @ 32 KHz, 2.0V, Typical
Precision 16 MHz Internal Oscillator Block::	Factory Calibrated To ± 1%
High Light:	programming ic chips , programmable audio chip

28/40/44-Pin, Low-Power, High-Performance Microcontrollers with nanoWatt XLP Technology

PIC18F46K22-I/PT 28/40/44-Pin, Low-Power, High-Performance Microcontrollers microchips and integrated circuits linear High-Performance RISC CPU:

• C Compiler Optimized Architecture:

- Optional extended instruction set designed to optimize re-entrant code

• Up to 1024 Bytes Data EEPROM

• Up to 64 Kbytes Linear Program Memory Addressing

• Up to 3896 Bytes Linear Data Memory Addressing

• Up to 16 MIPS Operation

• 16-bit Wide Instructions, 8-bit Wide Data Path

• Priority Levels for Interrupts

• 31-Level, Software Accessible Hardware Stack

• 8 x 8 Single-Cycle Hardware Multiplier

PLL SELECT TRUTH TABLE

Primary Clock MUX Source	FOSC<3:0>	PLLCFG	PLLEN	PLL Select
FOSC (any source)	0000-1111	0	0	0
OSC1/OSC2 (external source)	0000-0111 1010-1111	1	X	1
OSC1/OSC2 (external source)	0000-0111 1010-1111	0	1	1
INTOSC (internal source)	1000-1001	X	0	0
INTOSC (internal source)	1000-1001	X	1	1

CTMU BLOCK DIAGRAM

PIC18F46K22-I/PT 28/40/44-Pin, Low-Power, High-Performance Microcontrollers microchips and integrated circuits linear
