Ultrafast Avalanche SMD bridge type rectifier diode , BYG20J - E3 - TR

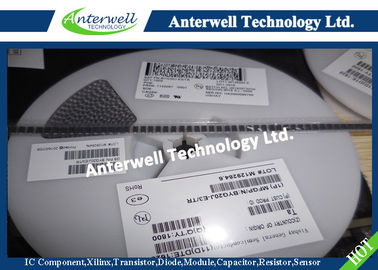

: Large Image : Ultrafast Avalanche SMD bridge type rectifier diode , BYG20J - E3 - TR

Product Details:

Place of Origin:	Original
Brand Name:	VISHAY
Certification:	Original
Model Number:	BYG20J-E3-TR

Payment & Shipping Terms:

Minimum Order Quantity:	5 PCS
Price:	0.1USD
Packaging Details:	contact us for more details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10000PCS/DAY

Contact Now

Detailed Product Description

Features:	Low Profile Package	Voltage:	200 V To 600 V
Description:	Matte Tin Plated Leads	Temperature:	260 °C
Use:	Rectifier	Type:	Diode
High Light:	diode rectifier circuit , bridge rectifier circuit

BYG20J-E3-TR Diode Ultrafast Avalanche SMD Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated junction

• Low reverse current

• Soft recovery characteristics

• Ultrafast reverse recovery time

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• AEC-Q101 qualified

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS compliant, commercial grade

Base P/NHE3 - RoHS compliant, AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

Color band denotes the cathode end

PRIMARY CHARACTERISTICS
^IF(AV)	1.5 A
^VRRM	200 V to 600 V
^IFSM	30 A
^IR	1.0 μA
^VF	1.4 V
^trr	75 ns
^ER	20 mJ
T_Jmax	150 °C

Ultrafast Avalanche SMD bridge type rectifier diode , BYG20J - E3 - TR
