Product Details:
Payment & Shipping Terms:
|
| Maximum Average Forward Rectified Current: | 2.0 A | Maximum Reverse Recovery Time: | 35 NS |
|---|---|---|---|
| Typical Thermal Resistance: | 25 ℃/W | Operating Temperature Range: | -55 To +150 ℃ |
| Storage Temperature Range: | -55 To +150 ℃ | Weight: | 0.003 Ounces,0.093 Grams |
| Highlight: | diode rectifier circuit,bridge rectifier circuit |
||

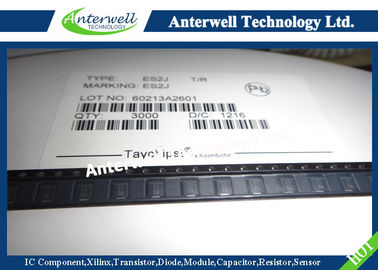

SURFACE MOUNT SUPER FAST GLASS PASSIVATED RECTIFIERS
REVERSE VOLTAGE - 50 to 600 Volts
FORWARD CURRENT - 2.0 Amperes
FEATURES
● Super fast switching time for high efficiency
●Low forward voltage drop and high current capability
●Low reverse leakage current
●Plastic material has UL flammability classification 94V-0
MECHANICAL DATA
●Case: Molded Plastic
●Polarity:Color band denotes cathode
●Weight: 0.003 ounces,0.093 grams
●Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load. For capacitive load, derate current by 20%
| CHARACTERISTICS | SYMBOL | ES2A | ES2B | ES2D | ES2G | ES2J | UNIT |
| Maximum Recurrent Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | V |
| Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | V |
| Maximum Average Forward Rectified Current @TA=50 ℃ | I(AV) | 2.0 | A | ||||
|
Peak Forward Surge Current 8.3ms Single Half Sine-Wave Super Imposed on Rated Load(JEDEC Method) |
IFSM | 75 | A | ||||
| Peak Forward Voltage at 2.0A DC | VF | 0.95 | 1.25 | 1.70 | V | ||
|
Maximum DC Reverse Current @TJ=25℃ at Rated DC Blocking Voltage @TJ=100℃ |
IR |
5.0 100 |
μA | ||||
| Maximum Reverse Recovery Time(Note 1) | TRR | 35 | nS | ||||
| Typical Junction Capacitance (Note2) | CJ | 40 | 30 | pF | |||
| Typical Thermal Resistance (Note3) | RθJA | 25 | ℃/W | ||||
| Operating Temperature Range | TJ | -55 to +150 | ℃ | ||||
| Storage Temperature Range | TSTG | -55 to +150 | ℃ | ||||
NOTES:
1.Measured with IF=0.5A, IR=1A, IRR=0.25A
2.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC
3.Thermal resistance junction to ambient.
