Product Details:
Payment & Shipping Terms:
|
| Transition Frequency: | 7.5 GHz | Collector-base Capacitance: | 0.4 PF |
|---|---|---|---|
| Collector-emitter Capacitance: | 0.2 PF | Emitter-base Capacitance: | 0.85 PF |
| Junction Ambient: | 450 K/W | Storage Temperature Range: | - 65 To + 150 °C |
| Highlight: | multi emitter transistor,silicon power transistors |
||

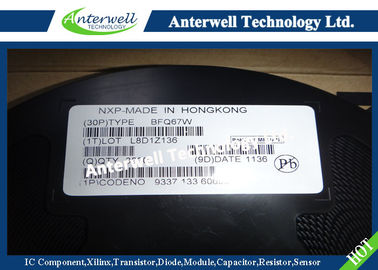

BFQ67 / BFQ67R / BFQ67W
Silicon NPN Planar RF Transistor
Features
• Small feedback capacitance
• Low noise figure
• High transition frequency
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Applications
Low noise small signal amplifiers up to 2 GHz. This transistor has superior noise figure and associated gain performance at UHF, VHF and microwave frequencies.
Mechanical Data
Typ: BFQ67
Case: SOT-23 Plastic case
Weight: approx. 8.0 mg
Marking: V2
Pinning: 1 = Collector, 2 = Base, 3 = Emitter
Typ: BFQ67R
Case: SOT-23 Plastic case
Weight: approx. 8.0 mg
Marking: R67
Pinning: 1 = Collector, 2 = Base, 3 = Emitter
Typ: BFQ67W
Case: SOT-323 Plastic case
Weight: approx. 6.0 mg
Marking: WV2
Pinning: 1 = Collector, 2 = Base, 3 = Emitter
Absolute Maximum Ratings
Tamb = 25 °C, unless otherwise specified
| Parameter | Test condition | Symbol | Value | Unit |
| Collector-base voltage | VCBO | 20 | V | |
| Collector-emitter voltage | VCEO | 10 | V | |
| Emitter-base voltage | VEBO | 2.5 | V | |
| Collector current | IC | 50 | mA | |
| Total power dissipation | Tamb ≤ 60 °C | Ptot | 200 | mW |
| Junction temperature | Tj | 150 | °C | |
| Storage temperature range | Tstg | - 65 to + 150 | °C |
Typical Characteristics (Tamb = 25 °C unless otherwise specified)
