Detailed Product Description
VIN Supply Voltage: 4.5 ~ 26 V VCC Supply Voltage: 4.0 ~ 5.5 V
Converter Output Current: 0 ~ 4 A VCC Input Capacitor: 0.22 ~ 2.2 MF
VIN-to-UGND Input Capacitor: 0.22 ~ 2.2 MF Ambient Temperature: -40 ~ 85 ℃
Junction Temperature: -40 ~ 125 ℃ Storage Temperature: -65 ~ 150 °C
High Light:

electronics ic chip

,

integrated circuit components


APW7080
4A, 26V, 380kHz, Asynchronous Step-Down Converter

Features
· Wide Input Voltage from 4.5V to 26V
· Output Current up to 4A
· Adjustable Output Voltage from 0.8V to 90%VIN
  - 0.8V Reference Voltage
  - ±2.5% System Accuracy
· 80mW Integrated P-Channel Power MOSFET
· High Efficiency up to 91%
  -Pulse-Skipping Mode (PSM)/PWM ModeOperation
· Current-Mode Operation
  - Stable with Ceramic Output Capacitors
  - Fast Transient Response
· Power-On-Reset Monitoring
· Fixed 380kHz Switching Frequency in PWM Mode
· Built-in Digital Soft-Start
· Output Current-Limit Protection with Frequency Foldback
· 70% Undervoltage Protection
· Over-Temperature Protection
· <5mA Quiescent Current during Shutdown
· Thermal-Enhanced SOP-8P Package
· Lead Free and Green Devices Available (RoHS Compliant)

General Description
The APW7080 is a 4A, asynchronous, step-down converter with integrated 80mW P-channel MOSFET. The device, with current-mode control scheme, can convert 4.5~26V input voltage to the output voltage adjustable from 0.8 to 90% VIN to provide excellent output voltage regulation.
The APW7080 regulates the output voltage in automatic PSM/PWM mode operation, depending on the output current, for high efficiency operation over light to full load current.The APW7080 is also equipped with power-onreset, soft-start, and whole protections (undervoltage, over temperature, and current-limit) into a single package. In shutdown mode, the supply current drops below 5mA.
This device, available in an 8-pin SOP-8P package, provides a very compact system solution with minimal external components and good thermal conductance.

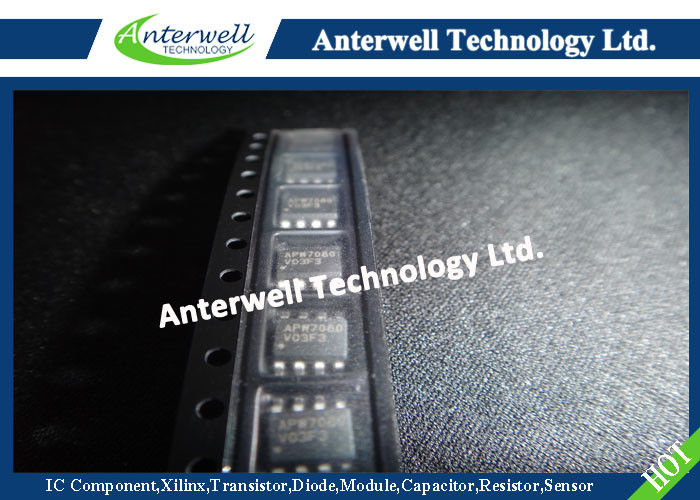

APW7080KAI-TRL digital integrated circuits Integrated Circuit Chip Asynchronous Step-Down Converter

Simplified Application Circuit
APW7080KAI-TRL digital integrated circuits Integrated Circuit Chip Asynchronous Step-Down Converter

Applications
· LCD Monitor / TV
· Set-Top Box
· Portable DVD
· Wireless LAN
· ADSL, Switch HUB
· Notebook Computer
· Step-down Converters Requiring High Efficiency and 4A Output Current

Absolute Maximum Ratings (Note 1)

SymbolParameterRatingUnit
VINVIN Supply Voltage (VIN to GND)-0.3 ~ 30V
VLXLX to GND Voltage> 100ns-2 ~ VIN+0.3V
< 100ns-5 ~ VIN+6V
VCCVCC Supply Voltage (VCC to GND)VIN > 6.2V-0.3 ~ 6.5V
VIN £ 6.2V< VIN+0.3V
VUGND_GNDUGND to GND Voltage-0.3 ~ VIN+0.3V
VVIN_UGNDVIN to UGND Voltage-0.3 ~ 6.5VV
 EN to GND Voltage-0.3 ~ 20V
 FB, COMP to GND Voltage-0.3 ~ VCC +0.3V
 Maximum Junction Temperature150°C
TSTGStorage Temperature-65 ~ 150°C
TSDRMaximum Lead Soldering Temperature, 10 Seconds260°C

Note 1: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device.

Block Diagram
APW7080KAI-TRL digital integrated circuits Integrated Circuit Chip Asynchronous Step-Down Converter
